Frictional Contact

Sources. Thesis §4.2.5 (p. 96, frictional models), §4.3.4 (pp. 113–123: strong form, weak forms, discretisation, algebraic forms, Algorithm 3, active-set strategy), Table 4.3; code: custom_conditions/ALM_frictional_mortar_contact_condition.{h,cpp}, custom_conditions/penalty_frictional_mortar_contact_condition.{h,cpp}, custom_conditions/mpc_mortar_contact_condition.cpp, automatic_differentiation/ALM_frictional_mortar_condition/generate_frictional_mortar_condition.py, automatic_differentiation/penalty_frictional_mortar_condition/generate_penalty_frictional_mortar_condition.py, custom_utilities/active_set_utilities.cpp, custom_utilities/mortar_explicit_contribution_utilities.cpp, custom_strategies/custom_convergencecriterias/alm_frictional_mortar_criteria.h, custom_strategies/custom_convergencecriterias/displacement_lagrangemultiplier_frictional_contact_criteria.h, custom_frictional_laws/{coulomb,tresca}_frictional_law.cpp, python_scripts/alm_contact_process.py, python_scripts/auxiliary_methods_solvers.py.

This page extends the frictionless formulation to frictional contact. Everything that is common with the frictionless case (definition of the problem, kinematics, gap function, dual Lagrange multipliers, mortar operators \(\mathbf{D}\) and \(\mathbf{M}\)) is not repeated here; see Frictionless contact and Mortar integration and dual Lagrange multipliers. The notation follows the thesis: superscript \(1\) is the slave body, superscript \(2\) the master body, \(\mathbf{n}\) the slave normal, \(\lambda_n\) the normal Lagrange multiplier, \(\boldsymbol{\lambda}_\tau\) the tangential one, \(\tilde{g}_n\) the weighted gap, \(\bar{\lambda}_n\) the augmented normal pressure, \(\varepsilon\) the penalty and \(k\) the scale factor.

The application implements three frictional variants, all restricted to the Coulomb law:

Frictional models (thesis §4.2.5)

The tribological origin of friction is complex (elastic and plastic deformation of asperities, wear particles, micro-fractures, …). The application deliberately restricts itself to the two simplest macroscopic laws, Tresca and Coulomb (thesis eq. 4.1):

$$ \begin{cases} \text{Tresca:} & \Vert \mathbf{F}_T \Vert \le g \\ \text{Coulomb:} & \Vert \mathbf{F}_T \Vert \le \mu \, \vert F_N \vert \end{cases} $$

The Tresca law depends only on a constant threshold \(g\), whereas Coulomb’s law scales the tangential threshold with the normal reaction through the friction coefficient \(\mu\). More elaborate laws (Coulomb–Orowan, Shaw, regularised Coulomb) saturate or smooth the friction cone, see Fig. 4.10; they are not implemented, but the generic threshold \(\mathscr{F}\) introduced below is the single place where a different law would enter (see Frictional laws at the end of this page).

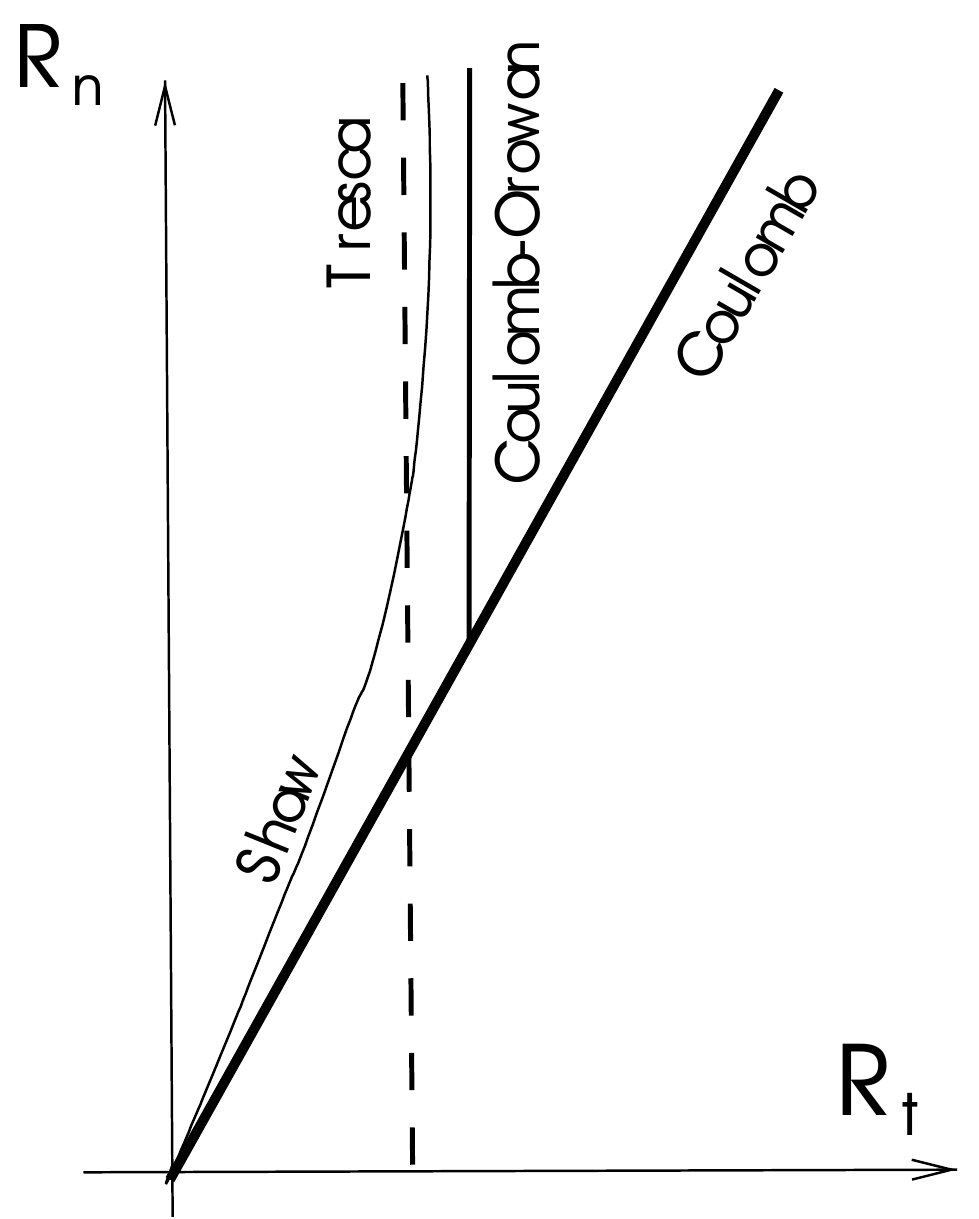

Figure: Friction cone for variants of the Coulomb law (thesis Fig. 4.10, inspired by Rao et al. 2016).

Strong formulation (thesis §4.3.4.1)

The solution spaces, the balance of linear momentum and the normal Karush–Kuhn–Tucker (KKT) conditions are exactly those of the frictionless problem (thesis eqs. 4.2–4.7); in particular the vector Lagrange multiplier developments of the “components” formulation (thesis §4.3.3.2.2) are reused. What is added is a constitutive law in the tangential direction.

Tangential contact condition: Coulomb’s law

The Coulomb law relates the tangential traction \(\mathbf{t}^\tau_{co}\) to the tangential relative velocity \(\mathbf{v}_{\tau,rel}\) through a non-smooth graph (Fig. 4.20) and is written with a slip-rate parameter \(\beta\) (thesis eq. 4.45):

$$ \begin{aligned} \phi_{co} &:= \Vert \mathbf{t}^\tau_{co} \Vert - \mu \Vert p_n \Vert \le 0 & \text{(4.45a)} \\ \mathbf{v}_{\tau,rel}(\mathbf{X}^1, t) + \beta \, \mathbf{t}^\tau_{co} &= \mathbf{0} & \text{(4.45b)} \\ \beta &\ge 0 & \text{(4.45c)} \\ \phi_{co} \, \beta &= 0 & \text{(4.45d)} \end{aligned} $$

where \(\mu\) is the friction coefficient and \(\beta\) the velocity–traction ratio. Eq. (4.45a) bounds the magnitude of the tangential stress by \(\mu\) times the normal contact pressure. When the tangential stress is strictly below the Coulomb limit (\(\phi_{co} \lt 0\)) the complementarity condition (4.45d) forces \(\beta = 0\), hence \(\mathbf{v}_{\tau,rel} = \mathbf{0}\): this is the stick state. When the tangential stress lies on the Coulomb limit (\(\phi_{co} = 0\)), \(\beta\) may be positive and (4.45b) forces the tangential stress to oppose the relative tangential velocity: this is the slip state.

Figure: Coulomb's schematic depiction of the frictional contact condition in tangential direction (thesis Fig. 4.20).

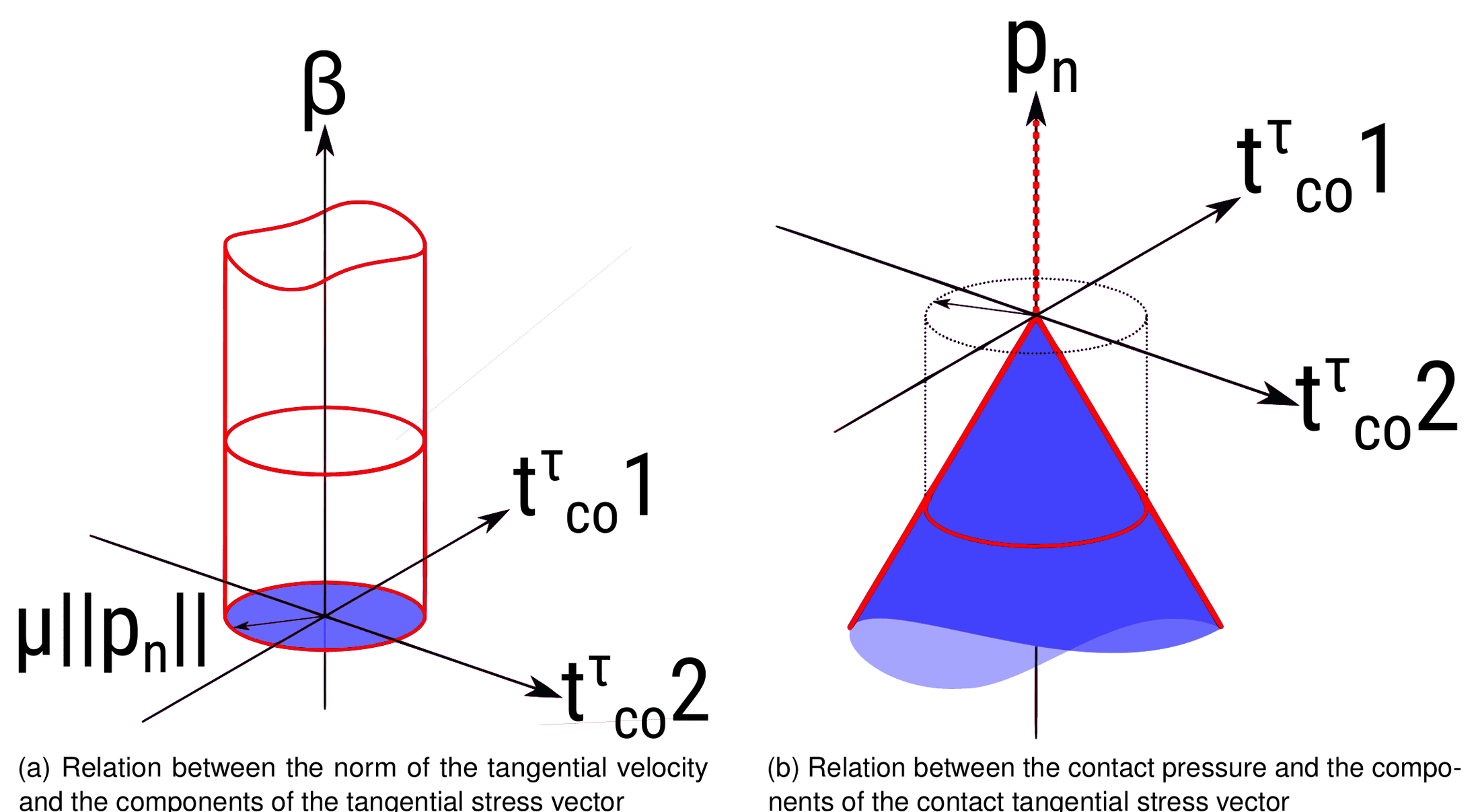

Figure 4.21 gives the geometrical picture in 3D. In (a) the admissible points are either inside the blue disc (\(\beta = 0\), \(\Vert \mathbf{t}^\tau_{co} \Vert \le \mu \Vert p_n \Vert\), stick) or on the surface of the red semi-infinite cylinder (\(\beta \ge 0\), \(\Vert \mathbf{t}^\tau_{co} \Vert = \mu \Vert p_n \Vert\), slip). In (b) the interior of the Coulomb cone (blue) is the stick state and the surface of the cone (red) the slip state.

Figure: Graphical representation of Coulomb's frictional conditions for a 3D contact problem: (a) norm of the tangential velocity vs. tangential stress components, (b) contact pressure vs. tangential stress components (thesis Fig. 4.21, inspired by Yastrebov 2011).

The analogy between friction and plasticity (thesis Table 4.3, after Yastrebov and Antoni) is a useful mental model, in particular for the return-mapping-like structure of the slip branch of the ALM functional below:

Finally the tangent direction is defined as the complement of the normal, which also defines the tangential Lagrange multiplier (thesis eq. 4.46):

$$ \boldsymbol{\tau} = \mathbf{I} - \mathbf{n} \otimes \mathbf{n}, \qquad \boldsymbol{\lambda}_\tau = \boldsymbol{\lambda} - \mathbf{n} \, \lambda_n \qquad \text{(4.46)} $$

In the code this is literally how the tangential multiplier is built (LMTangent[node,idim] = LM[node,idim] - LMNormal[node] * NormalSlave[node,idim] in the generator, tangent_lagrange_multiplier = r_lagrange_multiplier - normal_lagrange_multiplier * r_nodal_normal in ActiveSetUtilities).

Weak formulation (thesis §4.3.4.2)

Lagrange multiplier method (LMM)

Multiplying the balance of momentum (thesis eq. 4.2) by a test function \(\mathbf{w}^i \in \mathcal{V}^i\) and integrating on each domain \(i\) gives (thesis eq. 4.47)

$$ \mathcal{L}^i(\mathbf{u}^i) = \int_{\Omega^i} \left[ \nabla \cdot \boldsymbol{\sigma}^i + \mathbf{b}^i \right] \cdot \mathbf{w}^i \, \mathrm{d}\Omega^i + \int_{\Gamma^i_\sigma} \left[ \mathbf{t}^i - \boldsymbol{\sigma}^i \cdot \mathbf{n}^i \right] \cdot \mathbf{w}^i \, \mathrm{d}\Gamma^i_\sigma + \int_{\Gamma^i_{co}} \left[ \mathbf{t}^i_{co} - \boldsymbol{\sigma}^i \cdot \mathbf{n}^i \right] \cdot \mathbf{w}^i \, \mathrm{d}\Gamma^i_{co} = 0 $$

of which the part corresponding to the frictional contact is (thesis eq. 4.48)

$$ \mathcal{L}_{co}(\mathbf{u}, \boldsymbol{\lambda}) = \int_{\Gamma^i_c} \left[ \mathbf{t}^i_{co} - \boldsymbol{\sigma}^i \cdot \mathbf{n}^i \right] \mathrm{d}\Gamma^i_{co} $$

Taking the test functions as virtual displacements \(\delta \mathbf{u}\) and applying the divergence theorem yields the virtual work expression (thesis eq. 4.49)

$$ \delta \mathcal{L}^i(\mathbf{u}^i, \delta \mathbf{u}^i) = \int_{\Omega^i} \boldsymbol{\sigma}^i : \frac{\partial \delta \hat{\mathbf{u}}^i}{\partial x_j} \, \mathrm{d}\Omega^i - \int_{\Omega^i} \mathbf{b}^i \cdot \delta \mathbf{u}^i \, \mathrm{d}\Omega^i - \int_{\Gamma^i_\sigma} \mathbf{t}^i \cdot \delta \mathbf{u}^i \, \mathrm{d}\Gamma^i_\sigma - \int_{\Gamma^i_{co}} \mathbf{t}^i_{co} \cdot \delta \mathbf{u}^i \, \mathrm{d}\Gamma^i_{co} = 0 \quad \forall \delta \mathbf{u}^i \in \mathcal{V}^i $$

which is regrouped into kinetic, internal/external and contact contributions as in the frictionless case (thesis eq. 4.50):

$$ \begin{aligned} -\delta \mathcal{L}_{kin}(\mathbf{u}) &= \sum_{i=1}^{2} \left[ \int_{\Omega^i} \rho^i \ddot{\mathbf{u}}^i \cdot \delta \mathbf{u}^i \, \mathrm{d}\Omega^i \right] & \text{(4.50a)} \\ -\delta \mathcal{L}_{int,ext}(\mathbf{u}) &= \sum_{i=1}^{2} \left[ \int_{\Omega^i} \left( \boldsymbol{\sigma}^i : \frac{\partial \delta \hat{\mathbf{u}}^i}{\partial x_j} - \mathbf{b} \cdot \delta \mathbf{u}^i \right) \mathrm{d}\Omega^i - \int_{\Gamma^i_\sigma} \mathbf{t}^i \cdot \delta \mathbf{u}^i \, \mathrm{d}\Gamma^i_\sigma \right] & \text{(4.50b)} \\ -\delta \mathcal{L}_{co}(\mathbf{u}, \boldsymbol{\lambda}) &= \int_{\Gamma^1_{co}} \mathbf{t}^1_{co} \cdot \delta \mathbf{t}^1_c \, \mathrm{d}\Gamma^1_{co} & \text{(4.50c)} \end{aligned} $$

The balance of tractions across the interface (thesis eq. 4.51) is \(\mathbf{t}^1_{co} \, \mathrm{d}\gamma^1 = -\mathbf{t}^2_{co} \, \mathrm{d}\gamma^2\), so, taking the slave surface as reference, the contact virtual work is written in terms of the general (vector) gap \(\mathbf{g}\) instead of the normal gap only, and the Lagrange multiplier is identified as the negative slave contact traction (thesis eq. 4.52):

$$ \delta \mathcal{L}_{co}(\mathbf{u}, \boldsymbol{\lambda}) = - \int_{\Gamma^1_{co}} \mathbf{t}^1_{co} \cdot \delta \mathbf{g} \, \mathrm{d}\Gamma^1_{co}, \qquad \mathbf{g} = \left( \mathbf{u}^1 - \chi \cdot \mathbf{u}^2 \right), \qquad \boldsymbol{\lambda} = -\mathbf{t}^1_{co} \qquad \text{(4.52)} $$

where \(\chi\) is the interface mapping from the slave to the master surface.

Contact constraints

Using the multiplier of (4.52c), eq. (4.52a) is decomposed into normal and tangential components \(\lambda_n\) and \(\boldsymbol{\lambda}_\tau\), each with its own variational inequality (thesis eq. 4.53):

$$ \begin{aligned} \lambda_n \in \mathbb{R}^+_0 : \quad & g \left( \delta \lambda_n - \lambda_n \right) \ge 0 \quad \forall \delta \lambda_n \in \mathbb{R}^+_0 & \text{(4.53a)} \\ \boldsymbol{\lambda}_\tau \in \mathcal{B}(\mu \lambda_n) : \quad & \mathbf{v}_{\tau,rel} \cdot \left( \delta \boldsymbol{\lambda}_\tau - \boldsymbol{\lambda}_\tau \right) \le 0 \quad \forall \delta \boldsymbol{\lambda}_\tau \in \mathcal{B}(\mu \lambda_n) & \text{(4.53b)} \end{aligned} $$

\(\mathcal{B}(\mu \lambda_n)\) is the \((n-1)\)-dimensional sphere (disc) of centre \(0\) and radius \(\mu \lambda_n\), and \(\delta \boldsymbol{\lambda}_\tau\) is a trial force in the tangential plane: (4.53b) is the principle of maximal dissipation representing Coulomb’s law. The weak form of both constraints on the slave contact surface is (thesis eq. 4.54)

$$ \boldsymbol{\lambda} \in \mathcal{M}(\boldsymbol{\lambda}) : \quad \int_{\gamma^1_{co}} g \left( \delta \lambda_n - \lambda_n \right) \mathrm{d}\lambda \ge 0, \qquad \int_{\gamma^1_{co}} \mathbf{v}_{\tau,rel} \left( \delta \boldsymbol{\lambda}_\tau - \boldsymbol{\lambda}_\tau \right) \mathrm{d}\lambda \le 0 \quad \forall \delta \boldsymbol{\lambda} \in \mathcal{M}(\boldsymbol{\lambda}) \qquad \text{(4.54)} $$

where the admissible solution space of the multiplier (also the test space of the trial forces) is the convex subset \(\mathcal{M}(\boldsymbol{\lambda}) \subset \mathcal{M}\) (thesis eqs. 4.55–4.56)

$$ \mathcal{M}(\boldsymbol{\lambda}) := \left\{ \delta \boldsymbol{\lambda} \in \mathcal{M} : \langle \delta \boldsymbol{\lambda}, \boldsymbol{\eta} \rangle \le \langle \mu \lambda_n, \Vert \boldsymbol{\eta}_\tau \Vert \rangle, \; \boldsymbol{\eta} \in \mathcal{L}^1 \text{ with } \eta_n \le 0 \right\}, \qquad \langle \delta \boldsymbol{\lambda}, \boldsymbol{\eta} \rangle := \int_{\gamma^1_{co}} \delta \boldsymbol{\lambda} \, \boldsymbol{\eta} \, \mathrm{d}\gamma $$

with \(\langle \cdot, \cdot \rangle\) the duality pairing of \(\mathcal{M}\) and \(\mathcal{V}^1\) on \(\gamma^1_{co}\).

Penalty

The penalty formulation is introduced first because the ALM one is its combination with the LMM. The Lagrangian is split into normal and tangential parts (thesis eq. 4.57), with \(\mathbf{t}^n_{co} = \varepsilon_n g_n\) the normal contact traction and \(\mathbf{t}^\tau_{co} = \varepsilon_\tau \mathbf{v}_{\tau,rel}\) the tangential one:

$$ \mathcal{L}_{co}(\mathbf{u}) = \int_{\Gamma^i_c} l_n + l_\tau \, \mathrm{d}\Gamma^i_{co} \qquad \text{(4.57a)} $$

$$ l_n(g_n) = \begin{cases} -\dfrac{\varepsilon_n}{2} g_n^2 & , \; \mathbf{t}^n_{co} \le 0 \; \text{(Contact zone)} \\ 0 & , \; \mathbf{t}^n_{co} \gt 0 \; \text{(Gap zone)} \end{cases} \qquad \text{(4.57b)} $$

$$ l_\tau(\mathbf{v}_{\tau,rel}) = \begin{cases} \begin{cases} -\dfrac{\varepsilon_\tau}{2} \mathbf{v}_{\tau,rel} \cdot \mathbf{v}_{\tau,rel} & , \; \Vert \mathbf{t}^\tau_{co} \Vert \le -\mu \mathbf{t}^n_{co}, \; \text{stick} \\ -\dfrac{\mu}{\varepsilon_\tau} \left( \mathbf{t}^n_{co} \right)^2 \dfrac{\mathbf{v}_{\tau,rel}}{\Vert \mathbf{v}_{\tau,rel} \Vert} & , \; \Vert \mathbf{t}^\tau_{co} \Vert \gt -\mu \mathbf{t}^n_{co}, \; \text{slip} \end{cases} & , \; \mathbf{t}^n_{co} \le 0 \; \text{(Contact zone)} \\ 0 & , \; \mathbf{t}^n_{co} \gt 0 \; \text{(Gap zone)} \end{cases} \qquad \text{(4.57c)} $$

Its first variation (thesis eq. 4.58) already shows the three-way branch (stick / slip / gap) that every frictional condition of the application reproduces:

$$ \delta \mathcal{L}_{co}(\mathbf{u}) = \int_{\Gamma^i_c} \begin{cases} \mathbf{t}^n_{co} \cdot \delta g_n + \mathbf{t}^\tau_{co} \cdot \delta \mathbf{v}_{\tau,rel} & \text{if } \Vert \mathbf{t}^\tau_{co} \Vert \le -\mu \mathbf{t}^n_{co} \; \text{(Contact stick zone)} \\ \mathbf{t}^n_{co} \cdot \delta g_n - \mu \mathbf{t}^n_{co} \dfrac{\mathbf{v}_{\tau,rel}}{\Vert \mathbf{v}_{\tau,rel} \Vert} \delta \mathbf{v}_{\tau,rel} & \text{if } \Vert \mathbf{t}^\tau_{co} \Vert \gt -\mu \mathbf{t}^n_{co} \; \text{(Contact slip zone)} \\ 0 & \text{if } \mathbf{t}^n_{co} \gt 0 \; \text{(Gap zone)} \end{cases} \mathrm{d}\Gamma^i_{co} \qquad \text{(4.58)} $$

Augmented Lagrangian method (ALM)

Following Alart & Curnier, Cardona and Yastrebov, the augmented Lagrangian for friction combines the LMM and the penalty solutions. Focusing on the contact functional \(\mathcal{L}_{co}(\mathbf{u}, \boldsymbol{\lambda}) = \mathcal{L}_{\mathcal{V}co} + \mathcal{L}_\mathcal{M}\) (thesis eq. 4.59)

$$ \mathcal{L}_{co}(\mathbf{u}, \boldsymbol{\lambda}) = \int_{\Gamma^i_c} l_n + l_\tau \, \mathrm{d}\Gamma^i_{co} \qquad \text{(4.59)} $$

the normal part is the same as in the frictionless case (thesis eq. 4.60a), with \(\bar{\lambda}_n = k \lambda_n + \varepsilon_n g_n\) the augmented normal multiplier:

$$ l_n(g_n, \lambda_n) = \begin{cases} \bar{\lambda}_n g_n - \dfrac{\varepsilon_n}{2} g_n^2 & , \; \bar{\lambda}_n \le 0 \; \text{(Contact zone)} \\ -\dfrac{k^2}{2 \varepsilon_n} \lambda_n^2 & , \; \bar{\lambda}_n \gt 0 \; \text{(Gap zone)} \end{cases} \qquad \text{(4.60a)} $$

and the tangential part (thesis eq. 4.60b), with \(\bar{\boldsymbol{\lambda}}_\tau = k \boldsymbol{\lambda}_\tau + \varepsilon_\tau \mathbf{v}_{\tau,rel}\) the augmented tangential multiplier:

$$ l_\tau(\mathbf{v}_{\tau,rel}, \boldsymbol{\lambda}_\tau) = \begin{cases} \begin{cases} \bar{\boldsymbol{\lambda}}_\tau \cdot \mathbf{v}_{\tau,rel} - \dfrac{\varepsilon_\tau}{2} \mathbf{v}_{\tau,rel} \cdot \mathbf{v}_{\tau,rel} & , \; \Vert \bar{\boldsymbol{\lambda}}_\tau \Vert \le -\mu \bar{\lambda}_n, \; \text{stick} \\ -\dfrac{1}{2 \varepsilon_\tau} \left( k^2 \boldsymbol{\lambda}_\tau \cdot \boldsymbol{\lambda}_\tau + 2 \mu \bar{\lambda}_n \Vert \boldsymbol{\lambda}_\tau \Vert + \mu^2 \bar{\lambda}_n^2 \right) & , \; \Vert \bar{\boldsymbol{\lambda}}_\tau \Vert \gt -\mu \bar{\lambda}_n, \; \text{slip} \end{cases} & , \; \bar{\lambda}_n \le 0 \; \text{(Contact zone)} \\ -\dfrac{k^2}{2 \varepsilon_\tau} \boldsymbol{\lambda}_\tau \cdot \boldsymbol{\lambda}_\tau & , \; \bar{\lambda}_n \gt 0 \; \text{(Gap zone)} \end{cases} \qquad \text{(4.60b)} $$

Here \(\varepsilon_n\) and \(\varepsilon_\tau\) are positive penalty parameters for the normal and tangential directions and \(k\) is the positive scale factor. With the Macaulay bracket \(\langle \cdot \rangle\) both parts collapse to a single expression each (thesis eq. 4.61):

$$ l_n(g_n, \lambda_n) = \frac{1}{\varepsilon_n} \left( k^2 \lambda_n^2 - \langle \bar{\lambda}_n \rangle^2 \right), \qquad l_\tau(\mathbf{v}_{\tau,rel}, \boldsymbol{\lambda}_\tau) = \frac{1}{\varepsilon_\tau} \left( k^2 \boldsymbol{\lambda}_\tau \cdot \boldsymbol{\lambda}_\tau - \Vert \bar{\boldsymbol{\lambda}}_\tau \Vert^2 - \left\langle \Vert \bar{\boldsymbol{\lambda}}_\tau \Vert - \mu \vert \bar{\lambda}_n \vert \right\rangle^2 \right) \qquad \text{(4.61)} $$

This functional is a \(\mathcal{C}^1\)-differentiable saddle point (Fig. 4.22); the solution is the set of values that render it stationary. As in the frictionless case the solution does not depend on \(\varepsilon_n\), \(\varepsilon_\tau\), \(k\), only the convergence rate does (see the parameter calibration in Constrained optimisation methods).

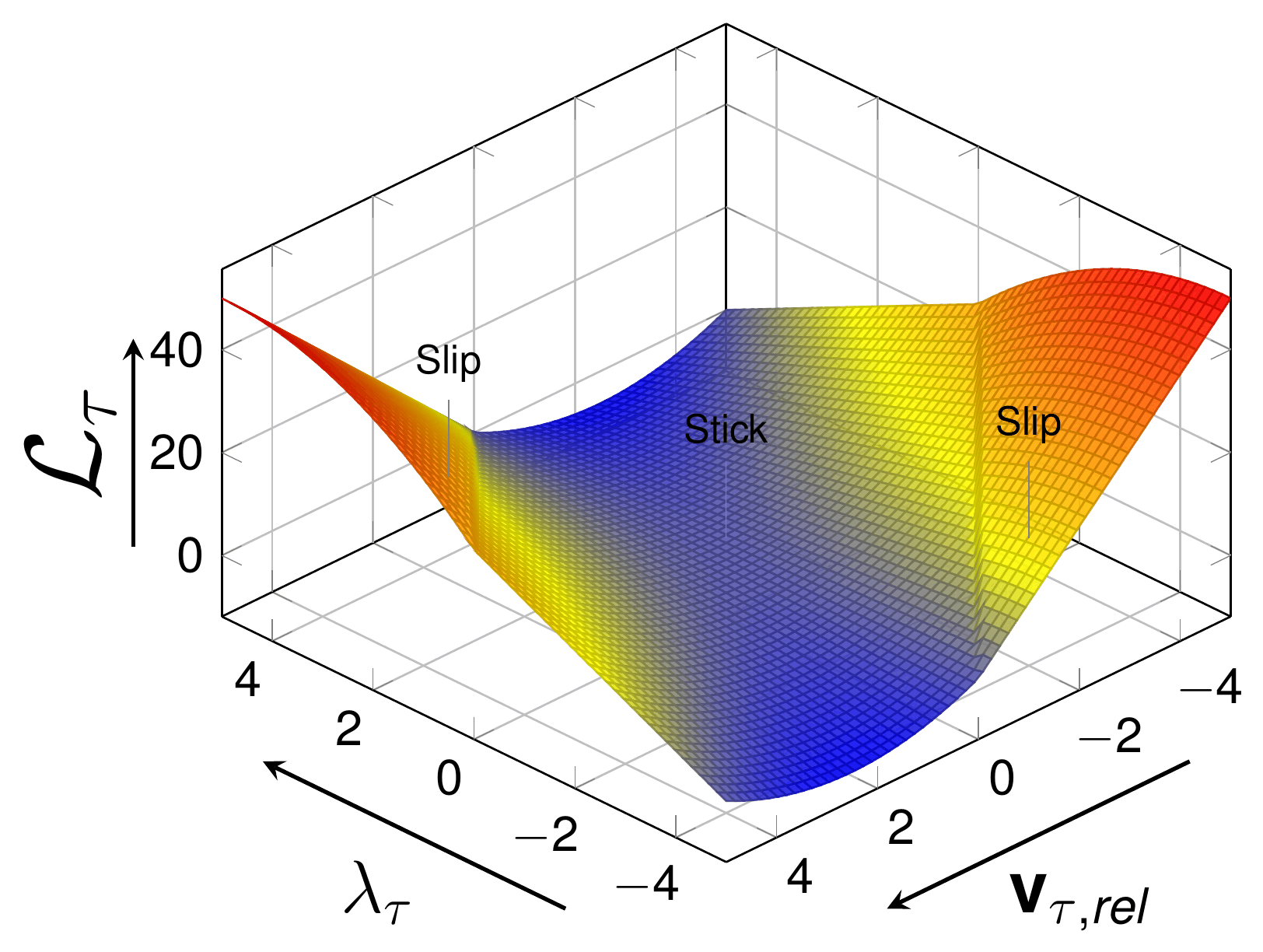

Figure: Augmented Lagrangian function for the frictional contact problem, corresponding to eq. (4.61b); the stick valley and the two slip flanks are visible (thesis Fig. 4.22).

Deriving (4.59) gives the variational form (thesis eq. 4.62), which is the continuous counterpart of the five branches generated symbolically in the code:

$$ \delta \mathcal{L}_{co}(\mathbf{u}, \boldsymbol{\lambda}) = \int_{\Gamma^1_c} \begin{cases} \bar{\lambda}_n \cdot \delta g_n + k g_n \delta \lambda_n + \bar{\boldsymbol{\lambda}}_\tau \cdot \delta \mathbf{v}_{\tau,rel} + \mathbf{v}_{\tau,rel} \cdot \delta \bar{\boldsymbol{\lambda}}_\tau & \text{if } \Vert \bar{\boldsymbol{\lambda}}_\tau \Vert \le -\mu \bar{\lambda}_n \; \text{(Contact stick zone)} \\ \bar{\lambda}_n \cdot \delta g_n + k g_n \delta \lambda_n - \mu \bar{\lambda}_n \dfrac{\boldsymbol{\lambda}_\tau}{\Vert \boldsymbol{\lambda}_\tau \Vert} \delta \mathbf{v}_{\tau,rel} - \dfrac{k \boldsymbol{\lambda}_\tau + \mu \bar{\lambda}_n \frac{\bar{\boldsymbol{\lambda}}_\tau}{\Vert \bar{\boldsymbol{\lambda}}_\tau \Vert}}{\varepsilon_\tau} \cdot \delta \boldsymbol{\lambda}_\tau & \text{if } \Vert \bar{\boldsymbol{\lambda}}_\tau \Vert \gt -\mu \bar{\lambda}_n \; \text{(Contact slip zone)} \\ -\dfrac{k^2}{\varepsilon_n} \lambda_n \delta \lambda_n - \dfrac{k^2}{\varepsilon_\tau} \boldsymbol{\lambda}_\tau \cdot \delta \boldsymbol{\lambda}_\tau & \text{if } \bar{\lambda}_n \gt 0 \; \text{(Gap zone)} \end{cases} \mathrm{d}\Gamma^i_{co} \qquad \text{(4.62)} $$

Because of (4.62) the system to solve depends on whether each node is in the gap, stick or slip zone: the system is not known a priori, as in the frictionless case, but now with one additional configuration. This is what the frictional active-set strategy below resolves.

Discretisation and numerical integration (thesis §4.3.4.3)

The dual Lagrange multipliers and the mortar operators are identical to the frictionless case. The new ingredients are the discrete tangential contact condition and, above all, a proper discrete slip built from the mortar operators.

Discrete contact condition in tangential direction

The tangential relative velocity \(\mathbf{v}_{\tau,rel}\) is discretised with the material velocity field \(\dot{\mathbf{x}}^i\), interpolated with the same shape functions as \(\mathbf{x}^i\) (thesis eq. 4.63):

$$ \int_{\gamma^1_c} \mathbf{v}_{\tau,rel} \cdot \left( \delta \boldsymbol{\lambda}_\tau - \boldsymbol{\lambda}_\tau \right) \mathrm{d}\gamma \approx \sum_{j=1}^{n_{slaves}} \left( \delta \boldsymbol{\lambda}_\tau - \boldsymbol{\lambda}_\tau \right)^T \boldsymbol{\tau}_j \left[ \int_{\gamma^1_c} \Phi_j N^1_j \, \mathrm{d}\gamma \, \dot{\mathbf{x}}^1_j - \sum_{l=1}^{n_{master}} \int_{\gamma^1_c} \Phi_j \left( N^2_l \cdot \xi \right) \mathrm{d}\gamma \, \dot{\mathbf{x}}^2_l \right] \ge 0 \quad \forall \delta \boldsymbol{\lambda} \in \mathcal{M}(\boldsymbol{\lambda}) \qquad \text{(4.63)} $$

and, recognising the mortar operators \(\mathbf{D}\) and \(\mathbf{M}\) (thesis §4.3.3.4.2), it becomes an expression in the weighted relative velocity \(\tilde{\mathbf{v}}_{\tau j}\) (thesis eq. 4.64):

$$ \int_{\gamma^1_c} \mathbf{v}_{\tau,rel} \cdot \left( \delta \boldsymbol{\lambda}_\tau - \boldsymbol{\lambda}_\tau \right) \mathrm{d}\gamma \approx \sum_{j=1}^{n_{slaves}} \left( \delta \boldsymbol{\lambda}_\tau - \boldsymbol{\lambda}_\tau \right)^T \boldsymbol{\tau}_j \left[ \mathbf{D}_j \dot{\mathbf{x}}^1_j - \sum_{l=1}^{n_{master}} \mathbf{M}_l \dot{\mathbf{x}}^2_l \right] = \sum_{j=1}^{n_{slaves}} \left( \delta \boldsymbol{\lambda}_\tau - \boldsymbol{\lambda}_\tau \right)^T \tilde{\mathbf{v}}_{\tau j} \ge 0 \qquad \text{(4.64)} $$

Slip definition and frame indifference

A proper frictional formulation in the finite-sliding context requires frame indifference (objectivity) of the rate measures: the tangential relative velocity must be unaffected by any rigid body motion that both bodies experience at the instant considered (Gitterle 2012, Yang–Laursen–Meng). Working in the time-continuous case, the naive mortar-projected tangential velocity is not frame indifferent (thesis eq. 4.65a). Objectivity is tested by viewing the motion from another frame (superscript \(*\)), related to the original one by a rigid translation \(\mathbf{c}(t)\) and a proper orthogonal rotation \(\mathbf{Q}(t)\) (4.65b); a frame-indifferent relative velocity must transform as (4.65c), but applying (4.65b) to (4.65a) gives (4.65d):

$$ \begin{aligned} \tilde{\mathbf{v}}^{nonobj}_\tau &= \boldsymbol{\tau}_j \left[ \mathbf{D}_j \dot{\mathbf{x}}^1_j - \sum_{l=1}^{n_{master}} \mathbf{M}_l \dot{\mathbf{x}}^2_l \right] & \text{(4.65a)} \\ \dot{\mathbf{x}}^{(1*)}_j &= \mathbf{c}(t) + \mathbf{Q}(t) \, \dot{\mathbf{x}}^1_j & \text{(4.65b)} \\ \tilde{\mathbf{v}}^{*}_\tau &= \mathbf{Q}(t) \, \tilde{\mathbf{v}}_\tau & \text{(4.65c)} \\ \tilde{\mathbf{v}}^{nonobj*}_\tau &= \mathbf{Q}(t) \, \tilde{\mathbf{v}}^{nonobj}_\tau - \dot{\mathbf{Q}}(t) \left[ \mathbf{D}_j \mathbf{x}^1_j - \sum_{l=1}^{n_{master}} \mathbf{M}_l \mathbf{x}^2_l \right] \cdot \boldsymbol{\tau}_j & \text{(4.65d)} \end{aligned} $$

Since in general \(\left[ \mathbf{D}_j \mathbf{x}^1_j - \sum_l \mathbf{M}_l \mathbf{x}^2_l \right] \ne \mathbf{0}\), (4.65d) violates (4.65c). Objectivity is restored by subtracting the rate of the mortar-projected distance between the bodies, \(\dot{\mathbf{g}}\) (thesis eq. 4.66):

$$ \tilde{\mathbf{v}}_\tau = \boldsymbol{\tau}_j \left[ \mathbf{D}_j \dot{\mathbf{x}}^1_j - \sum_{l=1}^{n_{master}} \mathbf{M}_l \dot{\mathbf{x}}^2_l - \dot{\mathbf{g}} \right] \qquad \text{(4.66)} $$

This retains the meaning of a tangential relative velocity when perfect sliding occurs (\(\dot{\mathbf{g}} = \mathbf{0}\)) but is objective under all conditions of contact. Expanding the time derivative of the mortar-projected distance (thesis eq. 4.67a) and inserting it in (4.66) shows that the objective velocity is carried entirely by the rates of the mortar operators (thesis eq. 4.67b):

$$ \dot{\mathbf{g}} = \frac{\mathrm{d}}{\mathrm{d}t} \left[ \mathbf{D}_j \mathbf{x}^1_j - \sum_{l=1}^{n_{master}} \mathbf{M}_l \mathbf{x}^2_l \right] = \left[ \mathbf{D}_j \dot{\mathbf{x}}^1_j - \sum_{l=1}^{n_{master}} \mathbf{M}_l \dot{\mathbf{x}}^2_l \right] + \left[ \dot{\mathbf{D}}_j \mathbf{x}^1_j - \sum_{l=1}^{n_{master}} \dot{\mathbf{M}}_l \mathbf{x}^2_l \right] \qquad \text{(4.67a)} $$

$$ \tilde{\mathbf{v}}_\tau = \boldsymbol{\tau}_j \left[ \dot{\mathbf{D}}_j \mathbf{x}^1_j - \sum_{l=1}^{n_{master}} \dot{\mathbf{M}}_l \mathbf{x}^2_l \right] \qquad \text{(4.67b)} $$

The rates of the mortar operators are approximated with any time scheme, in practice backward Euler (thesis eq. 4.68):

$$ \frac{\mathrm{d}(\cdot)}{\mathrm{d}t} \approx \frac{(\cdot)^{t+\Delta t} - (\cdot)^t}{\Delta t}, \qquad \frac{\mathrm{d}\mathbf{D}}{\mathrm{d}t} \approx \frac{\mathbf{D}^{t+\Delta t}_j - \mathbf{D}^t_j}{\Delta t}, \quad \frac{\mathrm{d}\mathbf{M}}{\mathrm{d}t} \approx \frac{\mathbf{M}^{t+\Delta t}_l - \mathbf{M}^t_l}{\Delta t} \qquad \text{(4.68)} $$

which gives the discrete weighted tangential velocity (thesis eq. 4.69a) and, multiplied by \(\Delta t\), the nodal slip increment \(\tilde{\mathbf{u}}_\tau\) (thesis eq. 4.69b) that enters all the algebraic systems below:

$$ \tilde{\mathbf{v}}_\tau = \boldsymbol{\tau}_j \left[ \frac{\mathbf{D}^{t+\Delta t}_j - \mathbf{D}^t_j}{\Delta t} \mathbf{x}^1_j - \sum_{l=1}^{n_{master}} \frac{\mathbf{M}^{t+\Delta t}_l - \mathbf{M}^t_l}{\Delta t} \mathbf{x}^2_l \right], \qquad \tilde{\mathbf{u}}_\tau = \boldsymbol{\tau}_j \left[ \left( \mathbf{D}^{t+\Delta t}_j - \mathbf{D}^t_j \right) \mathbf{x}^1_j - \sum_{l=1}^{n_{master}} \left( \mathbf{M}^{t+\Delta t}_l - \mathbf{M}^t_l \right) \mathbf{x}^2_l \right] \qquad \text{(4.69)} $$

This is why the frictional conditions must store the mortar operators of the previous converged step (\(\mathbf{D}^t\), \(\mathbf{M}^t\)): see mPreviousMortarOperators below. The code keeps both the objective slip (4.69b) and the non-objective one obtained from (4.65a), \(\tilde{\mathbf{u}}^{nonobj}_\tau = \boldsymbol{\tau}_j \left[ \mathbf{D}_j (\mathbf{x}^1_j - \mathbf{x}^{1,t}_j) - \sum_l \mathbf{M}_l (\mathbf{x}^2_l - \mathbf{x}^{2,t}_l) \right]\), and switches between them at run time (OPERATOR_THRESHOLD), because when the operators do not change between two steps (e.g. a perfectly matching interface that only translates tangentially, or a step where the pairing did not change) the objective increment (4.69b) is identically zero and the displacement-based one must be used instead.

Algebraic form of the problem (thesis §4.3.4.3.3)

All frictional systems use a vector Lagrange multiplier, so the static condensation with dual multipliers of the frictionless components case (thesis §4.3.3.4.4, MixedULMLinearSolver) applies unchanged. In addition to the sets of the frictionless case (\(\mathcal{N}\) interior nodes, \(\mathcal{M}\) master nodes, \(\mathcal{S}\) slave nodes, split into active \(\mathcal{A}\) and inactive \(\mathcal{I}\)), the active slave set is further split into slip (\(sl\)) and stick (\(st\)) subsets: \(\mathcal{A} = \mathcal{A}_{sl} \cup \mathcal{A}_{st}\).

LMM

With respect to the frictionless components system (thesis §4.3.3.4.3.2), the active LM block is split into slip and stick groups, and so is the multiplier residual (thesis eq. 4.70a):

$$ \left[ \begin{array}{ccccccc} \mathbf{K}_{\mathcal{N}\mathcal{N}} & \mathbf{K}_{\mathcal{N}\mathcal{M}} & \mathbf{K}_{\mathcal{N}\mathcal{S}_\mathcal{A}} & \mathbf{K}_{\mathcal{N}\mathcal{S}_\mathcal{I}} & \mathbf{0} & \mathbf{0} & \mathbf{0} \\ \mathbf{K}_{\mathcal{M}\mathcal{N}} & \mathbf{K}_{\mathcal{M}\mathcal{M}} & \mathbf{K}_{\mathcal{M}\mathcal{S}_\mathcal{A}} & \mathbf{K}_{\mathcal{M}\mathcal{S}_\mathcal{I}} & -\mathbf{M}^T_{\mathcal{A}_{sl}} & -\mathbf{M}^T_{\mathcal{A}_{st}} & -\mathbf{M}^T_{\mathcal{I}} \\ \mathbf{K}_{\mathcal{S}_\mathcal{A}\mathcal{N}} & \mathbf{K}_{\mathcal{S}_\mathcal{A}\mathcal{M}} & \mathbf{K}_{\mathcal{S}_\mathcal{A}\mathcal{S}_\mathcal{A}} & \mathbf{K}_{\mathcal{S}_\mathcal{A}\mathcal{S}_\mathcal{I}} & \mathbf{D}^T_{\mathcal{A}\mathcal{A}_{sl}} & \mathbf{D}^T_{\mathcal{A}\mathcal{A}_{st}} & \mathbf{D}^T_{\mathcal{A}\mathcal{I}} \\ \mathbf{K}_{\mathcal{S}_\mathcal{I}\mathcal{N}} & \mathbf{K}_{\mathcal{S}_\mathcal{I}\mathcal{M}} & \mathbf{K}_{\mathcal{S}_\mathcal{I}\mathcal{S}_\mathcal{A}} & \mathbf{K}_{\mathcal{S}_\mathcal{I}\mathcal{S}_\mathcal{I}} & \mathbf{D}^T_{\mathcal{I}\mathcal{A}_{sl}} & \mathbf{D}^T_{\mathcal{I}\mathcal{A}_{st}} & \mathbf{D}^T_{\mathcal{I}\mathcal{I}} \\ \mathbf{0} & \dfrac{\partial \mathbf{r}_{\lambda_{\mathcal{A}_{sl}}}}{\partial \mathbf{u}_\mathcal{M}} & \dfrac{\partial \mathbf{r}_{\lambda_{\mathcal{A}_{sl}}}}{\partial \mathbf{u}_{\mathcal{S}_\mathcal{A}}} & \dfrac{\partial \mathbf{r}_{\lambda_{\mathcal{A}_{sl}}}}{\partial \mathbf{u}_{\mathcal{S}_\mathcal{I}}} & \dfrac{\partial \mathbf{r}_{\lambda_{\mathcal{A}_{sl}}}}{\partial \boldsymbol{\lambda}_{\mathcal{A}_{sl}}} & \dfrac{\partial \mathbf{r}_{\lambda_{\mathcal{A}_{sl}}}}{\partial \boldsymbol{\lambda}_{\mathcal{A}_{st}}} & \mathbf{0} \\ \mathbf{0} & \dfrac{\partial \mathbf{r}_{\lambda_{\mathcal{A}_{st}}}}{\partial \mathbf{u}_\mathcal{M}} & \dfrac{\partial \mathbf{r}_{\lambda_{\mathcal{A}_{st}}}}{\partial \mathbf{u}_{\mathcal{S}_\mathcal{A}}} & \dfrac{\partial \mathbf{r}_{\lambda_{\mathcal{A}_{st}}}}{\partial \mathbf{u}_{\mathcal{S}_\mathcal{I}}} & \dfrac{\partial \mathbf{r}_{\lambda_{\mathcal{A}_{st}}}}{\partial \boldsymbol{\lambda}_{\mathcal{A}_{sl}}} & \dfrac{\partial \mathbf{r}_{\lambda_{\mathcal{A}_{st}}}}{\partial \boldsymbol{\lambda}_{\mathcal{A}_{st}}} & \mathbf{0} \\ \mathbf{0} & \mathbf{0} & \mathbf{0} & \mathbf{0} & \mathbf{0} & \mathbf{0} & \mathbf{I} \end{array} \right] \left[ \begin{array}{c} \Delta \mathbf{u}_\mathcal{N} \\ \Delta \mathbf{u}_\mathcal{M} \\ \Delta \mathbf{u}_{\mathcal{S}_\mathcal{A}} \\ \Delta \mathbf{u}_{\mathcal{S}_\mathcal{I}} \\ \Delta \boldsymbol{\lambda}_{\mathcal{A}_{sl}} \\ \Delta \boldsymbol{\lambda}_{\mathcal{A}_{st}} \\ \Delta \boldsymbol{\lambda}_\mathcal{I} \end{array} \right] = - \left[ \begin{array}{c} \mathbf{r}_\mathcal{N} \\ \mathbf{r}_\mathcal{M} \\ \mathbf{r}_{\mathcal{S}_\mathcal{A}} \\ \mathbf{r}_{\mathcal{S}_\mathcal{I}} \\ \mathbf{r}_{\lambda_{\mathcal{A}_{sl}}} \\ \mathbf{r}_{\lambda_{\mathcal{A}_{st}}} \\ \mathbf{r}_{\lambda_\mathcal{I}} \end{array} \right] \qquad \text{(4.70a)} $$

The multiplier residuals are (thesis eq. 4.70b), with \(\mathscr{F}\) the generic frictional threshold, which for Coulomb’s law is (thesis eq. 4.70c):

$$ \begin{cases} \mathbf{r}_{\lambda_{\mathcal{A}_{sl}}} = \mathbf{n} \cdot \left( -\mathbf{n} \cdot \left( \mathbf{D} \mathbf{x}_1 - \mathbf{M} \mathbf{x}_2 \right) \right) - \left( \boldsymbol{\tau} \cdot \boldsymbol{\lambda} - \mathscr{F} \right) \\ \mathbf{r}_{\lambda_{\mathcal{A}_{st}}} = \mathbf{n} \cdot \left( -\mathbf{n} \cdot \left( \mathbf{D} \mathbf{x}_1 - \mathbf{M} \mathbf{x}_2 \right) \right) + \tilde{\mathbf{u}}_\tau \\ \mathbf{r}_{\lambda_\mathcal{I}} = \boldsymbol{\lambda} \end{cases}, \qquad \mathscr{F} = -\mu \lambda_n \boldsymbol{\tau} \qquad \text{(4.70b, 4.70c)} $$

The derivative blocks of the LHS require the mortar operator derivatives described in Linearisation and derivatives. The formulation can be adapted to a different frictional criterion by changing \(\mathscr{F}\) in (4.70b) and in the corresponding active-set computation. \(\tilde{\mathbf{u}}_\tau\) is the slip increment (4.69b).

Penalty

Without multipliers, the split between slip and stick must be applied to the displacement DoFs of the contact zone, so the contact contributions are added directly to the displacement blocks. The system (thesis eq. 4.71a) therefore does not look square (6 block rows × 3 block columns) but is a square system of equations once the \(sl\)/\(st\) superscripts are understood as restrictions of the same DoFs:

$$ \left[ \begin{array}{ccc} \mathbf{K}_{\mathcal{N}\mathcal{N}} & \mathbf{K}_{\mathcal{N}\mathcal{M}} & \mathbf{K}_{\mathcal{N}\mathcal{S}} \\ \mathbf{K}^{sl}_{\mathcal{M}\mathcal{N}} & \mathbf{K}^{sl}_{\mathcal{M}\mathcal{M}} - \varepsilon_n \left( \mathbf{n} \cdot \mathbf{M}^{slT} + \dfrac{\partial \left( \mathbf{n} \cdot \mathbf{M}^{slT} \right)}{\partial \mathbf{u}_\mathcal{M}} \mathbf{x}^{sl}_\mathcal{M} \right) + \dfrac{\partial \mathscr{F}_\mathcal{M}}{\partial \mathbf{u}_\mathcal{M}} & \mathbf{K}^{sl}_{\mathcal{M}\mathcal{S}} - \varepsilon_n \dfrac{\partial \left( \mathbf{n} \cdot \mathbf{M}^{slT} \right)}{\partial \mathbf{u}_\mathcal{S}} \mathbf{x}^{sl}_\mathcal{M} + \dfrac{\partial \mathscr{F}_\mathcal{M}}{\partial \mathbf{u}_\mathcal{S}} \\ \mathbf{K}^{sl}_{\mathcal{S}_\mathcal{A}\mathcal{N}} & \mathbf{K}^{sl}_{\mathcal{S}_\mathcal{A}\mathcal{M}} + \varepsilon_n \dfrac{\partial \left( \mathbf{n} \cdot \mathbf{D}^{sl}_\mathcal{A} \right)}{\partial \mathbf{u}_\mathcal{M}} \mathbf{x}^{sl}_{\mathcal{S}_\mathcal{A}} + \dfrac{\partial \mathscr{F}_\mathcal{S}}{\partial \mathbf{u}_\mathcal{M}} & \mathbf{K}^{sl}_{\mathcal{S}_\mathcal{A}\mathcal{S}_\mathcal{A}} + \varepsilon_n \left( \mathbf{n} \cdot \mathbf{D}^{slT}_\mathcal{A} + \dfrac{\partial \left( \mathbf{n} \cdot \mathbf{D}^{slT}_\mathcal{A} \right)}{\partial \mathbf{u}_{\mathcal{S}_\mathcal{A}}} \mathbf{x}^{sl}_{\mathcal{S}_\mathcal{A}} \right) + \dfrac{\partial \mathscr{F}_\mathcal{S}}{\partial \mathbf{u}_{\mathcal{S}_\mathcal{A}}} \\ \mathbf{K}^{st}_{\mathcal{M}\mathcal{N}} & \mathbf{K}^{st}_{\mathcal{M}\mathcal{M}} - \left( \varepsilon_n \mathbf{n} \cdot \mathbf{M}^{stT} + \dfrac{\partial \left( \mathbf{n} \cdot \mathbf{M}^{stT} \right)}{\partial \mathbf{u}_\mathcal{M}} \mathbf{x}^{st}_\mathcal{M} \right) - \varepsilon_t \dfrac{\partial \tilde{\mathbf{u}}_\tau}{\partial \mathbf{u}_\mathcal{M}} & \mathbf{K}^{st}_{\mathcal{M}\mathcal{S}} - \varepsilon_n \dfrac{\partial \left( \mathbf{n} \cdot \mathbf{M}^{stT} \right)}{\partial \mathbf{u}_{\mathcal{S}_\mathcal{A}}} \mathbf{x}^{st}_\mathcal{M} - \varepsilon_t \dfrac{\partial \tilde{\mathbf{u}}_\tau}{\partial \mathbf{u}_{\mathcal{S}_\mathcal{A}}} \\ \mathbf{K}^{st}_{\mathcal{S}_\mathcal{A}\mathcal{N}} & \mathbf{K}^{st}_{\mathcal{S}_\mathcal{A}\mathcal{M}} + \varepsilon_n \dfrac{\partial \left( \mathbf{n} \cdot \mathbf{D}^{st}_\mathcal{A} \right)}{\partial \mathbf{u}_\mathcal{M}} \mathbf{x}^{st}_{\mathcal{S}_\mathcal{A}} + \varepsilon_t \dfrac{\partial \tilde{\mathbf{u}}_\tau}{\partial \mathbf{u}_\mathcal{M}} & \mathbf{K}^{st}_{\mathcal{S}_\mathcal{A}\mathcal{S}_\mathcal{A}} + \varepsilon_n \left( \mathbf{n} \cdot \mathbf{D}^{stT}_\mathcal{A} + \dfrac{\partial \left( \mathbf{n} \cdot \mathbf{D}^{stT}_\mathcal{A} \right)}{\partial \mathbf{u}_{\mathcal{S}_\mathcal{A}}} \mathbf{x}^{st}_{\mathcal{S}_\mathcal{A}} \right) + \varepsilon_t \dfrac{\partial \tilde{\mathbf{u}}_\tau}{\partial \mathbf{u}_{\mathcal{S}_\mathcal{A}}} \\ \mathbf{K}_{\mathcal{S}_\mathcal{I}\mathcal{N}} & \mathbf{K}_{\mathcal{S}_\mathcal{I}\mathcal{M}} & \mathbf{K}_{\mathcal{S}_\mathcal{I}\mathcal{S}_\mathcal{I}} \end{array} \right] \left[ \begin{array}{c} \Delta \mathbf{u}_\mathcal{N} \\ \Delta \mathbf{u}^{sl}_\mathcal{M} \\ \Delta \mathbf{u}^{sl}_{\mathcal{S}_\mathcal{A}} \\ \Delta \mathbf{u}^{st}_\mathcal{M} \\ \Delta \mathbf{u}^{st}_{\mathcal{S}_\mathcal{A}} \\ \Delta \mathbf{u}_{\mathcal{S}_\mathcal{I}} \end{array} \right] = - \left[ \begin{array}{c} \mathbf{r}_\mathcal{N} \\ \mathbf{r}_\mathcal{M} - \varepsilon_n \mathbf{n} \cdot \mathbf{M}^{sl} \mathbf{x}^{sl}_\mathcal{M} + \mathscr{F}_\mathcal{M} \\ \mathbf{r}^{sl}_{\mathcal{S}_\mathcal{A}} + \varepsilon_n \mathbf{n} \cdot \mathbf{D}^{sl}_\mathcal{A} \mathbf{x}^{sl}_\mathcal{S} + \mathscr{F}_\mathcal{S} \\ \mathbf{r}^{st}_\mathcal{M} - \varepsilon_n \mathbf{n} \cdot \mathbf{M}^{st} \mathbf{x}^{st}_\mathcal{M} - \varepsilon_t \tilde{\mathbf{u}}_\tau \\ \mathbf{r}^{st}_{\mathcal{S}_\mathcal{A}} + \varepsilon_n \mathbf{n} \cdot \mathbf{D}^{st}_\mathcal{A} \mathbf{x}^{st}_\mathcal{S} + \varepsilon_t \tilde{\mathbf{u}}_\tau \\ \mathbf{r}_{\mathcal{S}_\mathcal{I}} \end{array} \right] \qquad \text{(4.71a)} $$

For the penalty formulation with Coulomb’s law the frictional threshold is \(\mathscr{F} = -\mu \varepsilon_n \tilde{g}_n \boldsymbol{\tau}\): the penalty approximation of the normal pressure (\(\varepsilon_n \tilde{g}_n\)) multiplied by \(\mu\) in the tangent direction. Since no multiplier is available to define the tangent direction, it is taken from the slip increment itself, \(\boldsymbol{\tau} = \tilde{\mathbf{u}}_\tau / \Vert \tilde{\mathbf{u}}_\tau \Vert\) (this is what ComputePenaltyFrictionalActiveSet does, see below).

ALM

The ALM system has the same structure as the LMM one, but with the scale factor \(k\) multiplying the mortar blocks and with two different penalties, \(\varepsilon_n\) and \(\varepsilon_\tau\) (thesis eq. 4.72a):

$$ \left[ \begin{array}{ccccccc} \mathbf{K}_{\mathcal{N}\mathcal{N}} & \mathbf{K}_{\mathcal{N}\mathcal{M}} & \mathbf{K}_{\mathcal{N}\mathcal{S}_\mathcal{A}} & \mathbf{K}_{\mathcal{N}\mathcal{S}_\mathcal{I}} & \mathbf{0} & \mathbf{0} & \mathbf{0} \\ \mathbf{K}_{\mathcal{M}\mathcal{N}} & \mathbf{K}_{\mathcal{M}\mathcal{M}} & \mathbf{K}_{\mathcal{M}\mathcal{S}_\mathcal{A}} & \mathbf{K}_{\mathcal{M}\mathcal{S}_\mathcal{I}} & -k \mathbf{M}^T_{\mathcal{A}_{sl}} & -k \mathbf{M}^T_{\mathcal{A}_{st}} & -k \mathbf{M}^T_{\mathcal{I}} \\ \mathbf{K}_{\mathcal{S}_\mathcal{A}\mathcal{N}} & \mathbf{K}_{\mathcal{S}_\mathcal{A}\mathcal{M}} & \mathbf{K}_{\mathcal{S}_\mathcal{A}\mathcal{S}_\mathcal{A}} & \mathbf{K}_{\mathcal{S}_\mathcal{A}\mathcal{S}_\mathcal{I}} & k \mathbf{D}^T_{\mathcal{A}\mathcal{A}_{sl}} & k \mathbf{D}^T_{\mathcal{A}\mathcal{A}_{st}} & k \mathbf{D}^T_{\mathcal{A}\mathcal{I}} \\ \mathbf{K}_{\mathcal{S}_\mathcal{I}\mathcal{N}} & \mathbf{K}_{\mathcal{S}_\mathcal{I}\mathcal{M}} & \mathbf{K}_{\mathcal{S}_\mathcal{I}\mathcal{S}_\mathcal{A}} & \mathbf{K}_{\mathcal{S}_\mathcal{I}\mathcal{S}_\mathcal{I}} & k \mathbf{D}^T_{\mathcal{I}\mathcal{A}_{sl}} & k \mathbf{D}^T_{\mathcal{I}\mathcal{A}_{st}} & k \mathbf{D}^T_{\mathcal{I}\mathcal{I}} \\ \mathbf{0} & \dfrac{\partial \mathbf{r}_{\lambda_{\mathcal{A}_{sl}}}}{\partial \mathbf{u}_\mathcal{M}} & \dfrac{\partial \mathbf{r}_{\lambda_{\mathcal{A}_{sl}}}}{\partial \mathbf{u}_{\mathcal{S}_\mathcal{A}}} & \dfrac{\partial \mathbf{r}_{\lambda_{\mathcal{A}_{sl}}}}{\partial \mathbf{u}_{\mathcal{S}_\mathcal{I}}} & \dfrac{\partial \mathbf{r}_{\lambda_{\mathcal{A}_{sl}}}}{\partial \boldsymbol{\lambda}_{\mathcal{A}_{sl}}} & \dfrac{\partial \mathbf{r}_{\lambda_{\mathcal{A}_{sl}}}}{\partial \boldsymbol{\lambda}_{\mathcal{A}_{st}}} & \mathbf{0} \\ \mathbf{0} & \dfrac{\partial \mathbf{r}_{\lambda_{\mathcal{A}_{st}}}}{\partial \mathbf{u}_\mathcal{M}} & \dfrac{\partial \mathbf{r}_{\lambda_{\mathcal{A}_{st}}}}{\partial \mathbf{u}_{\mathcal{S}_\mathcal{A}}} & \dfrac{\partial \mathbf{r}_{\lambda_{\mathcal{A}_{st}}}}{\partial \mathbf{u}_{\mathcal{S}_\mathcal{I}}} & \dfrac{\partial \mathbf{r}_{\lambda_{\mathcal{A}_{st}}}}{\partial \boldsymbol{\lambda}_{\mathcal{A}_{sl}}} & \dfrac{\partial \mathbf{r}_{\lambda_{\mathcal{A}_{st}}}}{\partial \boldsymbol{\lambda}_{\mathcal{A}_{st}}} & \mathbf{0} \\ \mathbf{0} & \mathbf{0} & \mathbf{0} & \mathbf{0} & \mathbf{0} & \mathbf{0} & \dfrac{\partial \mathbf{r}_{\lambda_\mathcal{I}}}{\partial \boldsymbol{\lambda}_\mathcal{I}} \end{array} \right] \left[ \begin{array}{c} \Delta \mathbf{u}_\mathcal{N} \\ \Delta \mathbf{u}_\mathcal{M} \\ \Delta \mathbf{u}_{\mathcal{S}_\mathcal{A}} \\ \Delta \mathbf{u}_{\mathcal{S}_\mathcal{I}} \\ \Delta \boldsymbol{\lambda}_{\mathcal{A}_{sl}} \\ \Delta \boldsymbol{\lambda}_{\mathcal{A}_{st}} \\ \Delta \boldsymbol{\lambda}_\mathcal{I} \end{array} \right] = - \left[ \begin{array}{c} \mathbf{r}_\mathcal{N} \\ \mathbf{r}_\mathcal{M} \\ \mathbf{r}_{\mathcal{S}_\mathcal{A}} \\ \mathbf{r}_{\mathcal{S}_\mathcal{I}} \\ \mathbf{r}_{\lambda_{\mathcal{A}_{sl}}} \\ \mathbf{r}_{\lambda_{\mathcal{A}_{st}}} \\ \mathbf{r}_{\lambda_\mathcal{I}} \end{array} \right] \qquad \text{(4.72a)} $$

The multiplier residual is separated in three parts (inactive, active slip, active stick). In the ALM the Coulomb threshold is computed with the augmented normal pressure \(\bar{\lambda}_n\) instead of \(\lambda_n\), \(\mathscr{F} = -\mu \bar{\lambda}_n \boldsymbol{\tau}\) (thesis eq. 4.72b):

$$ \begin{cases} \mathbf{r}_{\lambda_{\mathcal{A}_{sl}}} = k \mathbf{n} \cdot \left( -\mathbf{n} \cdot \left( \mathbf{D} \mathbf{x}_1 - \mathbf{M} \mathbf{x}_2 \right) \right) - \dfrac{k^2}{\varepsilon_n} \left( \boldsymbol{\tau} \cdot \boldsymbol{\lambda} - \dfrac{\mathscr{F}}{k} \right) \\ \mathbf{r}_{\lambda_{\mathcal{A}_{st}}} = k \mathbf{n} \cdot \left( -\mathbf{n} \cdot \left( \mathbf{D} \mathbf{x}_1 - \mathbf{M} \mathbf{x}_2 \right) \right) + k \tilde{\mathbf{u}}_\tau \\ \mathbf{r}_{\lambda_\mathcal{I}} = \dfrac{k^2}{\varepsilon_n} \mathbf{n} \cdot \boldsymbol{\lambda} + \dfrac{k^2}{\varepsilon_\tau} \boldsymbol{\tau} \cdot \boldsymbol{\lambda} \end{cases} \qquad \text{(4.72b)} $$

These three residuals are exactly the three nodal branches (inactive / active-slip / active-stick) of the generated CalculateLocalRHS of AugmentedLagrangianMethodFrictionalMortarContactCondition; the tangential penalty is expressed in the code as \(\varepsilon_\tau = \kappa \, \varepsilon_n\) with \(\kappa\) = TANGENT_FACTOR.

Work-flow: solution algorithm (thesis §4.3.4.4, Algorithm 3)

Compared with the frictionless loop (thesis Algorithm 2, see Frictionless contact) the frictional loop needs (i) a more complex active set that also tracks the slip/stick state, and (ii) separate residual checks for the normal, tangential-slip and tangential-stick multiplier components, because their orders of magnitude differ greatly and mixing them makes convergence hard to assess. The contact search must be repeated at every time step to follow the evolution of the geometry.

Algorithm 3 — Algorithm for the frictional contact problem (thesis)
 1: procedure ALGORITHM FOR THE FRICTIONAL CONTACT PROBLEM
 2:   t = 0 and i = 0
 3:   Initialise the solution for u^0 = 0
 4:   In case of solving LM solution, initialise the LM solution λ^0 = 0
 5:   Initialise the active set A^0_1 and I^0_1 such that A^0_1 ∪ I^0_1 = S and A^0_1 ∩ I^0_1 = ∅
 6:   Initialise the slip/stick set A^0_sl1 and A^0_st1 such that A^0_sl1 ∪ A^0_st1 = A^0_1 and A^0_sl1 ∩ A^0_st1 = ∅
 7:   while t < t_end do
 8:     t = t + Δt and i = i + 1
 9:     Initialise the increment of solution for Δu^i_1 = 0
10:     In case of solving LM solution, initialise the LM increment Δλ^i_1 = 0
11:     Search for potential contact pairs, and if required update the pairs and the active set, respecting step 5
12:     We define the problem as not converged: conv = false
13:     while conv = false do
14:       Find the solution corresponding to the system of §4.3.4.3.3 (eqs. 4.70a / 4.71a / 4.72a)
15:       Update the solution: u^i_{n+1} = u^i_n + Δu^i_{n+1}, and in case of LM: λ^i_{n+1} = λ^i_n + Δλ^i_{n+1}
16:       Update the active set as in (4.73); the threshold for each case is (4.74)
17:       Update the slip/stick set as in (4.75); this requires the frictional threshold F (4.76) and the tangent contact stress t^τ_co (4.77)
18:       Compute the corresponding residuals and check (4.78)
19:       Solution converged if A^{i+1}_{sl n+1} = A^i_{sl n+1}, A^{i+1}_{st n+1} = A^i_{st n+1}, I^{i+1}_{n+1} = I^i_{n+1} and the residuals (4.78) are converged

The active set update (thesis eq. 4.73) and its thresholds (thesis eq. 4.74):

$$ \mathcal{I}^{i+1}_{n+1} := \left\{ j \in \mathcal{S} \, \vert \, \text{threshold}^{i+1}_{n+1} \ge 0 \right\}, \qquad \mathcal{A}^{i+1}_{n+1} := \left\{ j \in \mathcal{S} \, \vert \, \text{threshold}^{i+1}_{n+1} \lt 0 \right\} \qquad \text{(4.73)} $$

$$ \text{threshold}_{LM} = \lambda_n \text{ or } \mathbf{n} \cdot \boldsymbol{\lambda}, \qquad \text{threshold}_{Penalty} = \epsilon \tilde{g}_n, \qquad \text{threshold}_{ALM} = k \lambda_n + \epsilon \tilde{g}_n \text{ or } k \, \mathbf{n} \cdot \boldsymbol{\lambda} + \epsilon \tilde{g}_n \qquad \text{(4.74)} $$

The slip/stick update (thesis eq. 4.75) compares the tangent contact stress with the frictional threshold:

$$ \mathcal{A}^{i+1}_{sl \, n+1} := \left\{ j \in \mathcal{A} \, \vert \, \mathbf{t}^\tau_{co} \ge \mathscr{F}^{i+1}_{n+1} \right\}, \qquad \mathcal{A}^{i+1}_{st \, n+1} := \left\{ j \in \mathcal{A} \, \vert \, \mathbf{t}^\tau_{co} \lt \mathscr{F}_{n+1} \right\} \qquad \text{(4.75)} $$

with Coulomb thresholds and tangent stresses per formulation (thesis eqs. 4.76–4.77):

$$ \mathscr{F}_{LM} = \mu \, \mathbf{n} \cdot \boldsymbol{\lambda}, \qquad \mathscr{F}_{Penalty} = \mu \varepsilon_n \tilde{g}_n, \qquad \mathscr{F}_{ALM} = \mu \left( k \, \mathbf{n} \cdot \boldsymbol{\lambda} + \varepsilon_n \tilde{g}_n \right) \qquad \text{(4.76)} $$

$$ \mathbf{t}^\tau_{LM \, co} = \Vert \boldsymbol{\tau} \cdot \boldsymbol{\lambda} \Vert, \qquad \mathbf{t}^\tau_{Penalty \, co} = \Vert \varepsilon_\tau \tilde{\mathbf{u}}_\tau \Vert, \qquad \mathbf{t}^\tau_{ALM \, co} = \Vert k \boldsymbol{\tau} \cdot \boldsymbol{\lambda} + \varepsilon_\tau \tilde{\mathbf{u}}_\tau \Vert \qquad \text{(4.77)} $$

and finally the four separate residual checks (thesis eq. 4.78):

$$ \Vert \mathbf{r}_u \Vert \lt \text{tolerance}_u, \qquad \Vert \mathbf{r}_{\lambda_n} \Vert \lt \text{tolerance}_{\lambda_n}, \qquad \Vert \mathbf{r}_{\lambda^{sl}_\tau} \Vert \lt \text{tolerance}_{\lambda^{sl}_\tau}, \qquad \Vert \mathbf{r}_{\lambda^{st}_\tau} \Vert \lt \text{tolerance}_{\lambda^{st}_\tau} \qquad \text{(4.78)} $$

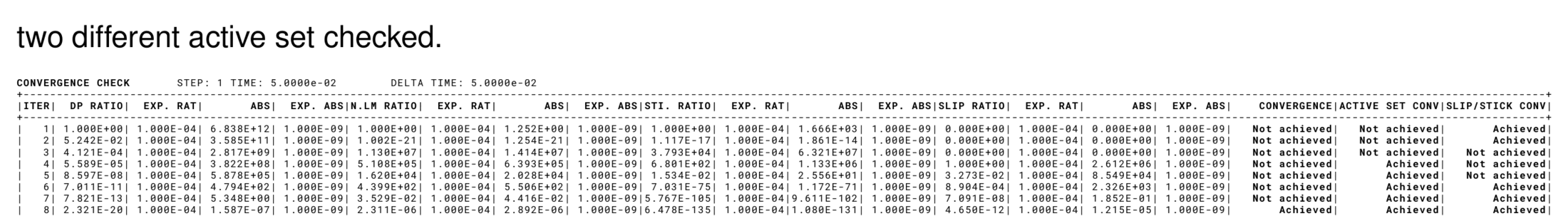

Figure 4.23 is the console output of Kratos for one time step of a frictional problem: the table printed by MortarAndConvergenceCriteria shows the displacement, normal-LM, stick-LM and slip-LM ratios/absolute norms of (4.78) together with the two active-set columns (ACTIVE SET CONV, SLIP/STICK CONV) of Algorithm 3, line 19.

Figure: Example of convergence check in the frictional contact — four residuals plus the active set and the slip/stick set (thesis Fig. 4.23).

Active set strategy: semi-smooth Newton (thesis §4.3.4.5)

As for the frictionless problem, the reformulation of the frictional conditions as a non-smooth system of equations allows a primal-dual active set strategy (PDASS) interpreted as a semi-smooth Newton method. The LM contribution of the augmented Lagrangian (4.60) replaces the nonlinear complementarity (NCP) function used by Popp and Gitterle; in tangential direction this NCP function is a two-component vector equation (thesis eq. 4.79)

$$ \mathcal{C}_\tau(\boldsymbol{\lambda}_\tau, \tilde{\mathbf{u}}_\tau) = \max\left( \mu \bar{\lambda}_n, \Vert \bar{\boldsymbol{\lambda}}_\tau \Vert \right) \boldsymbol{\lambda}_\tau - \mu \max\left( 0, \lambda_n \right) \bar{\boldsymbol{\lambda}}_\tau \qquad \text{(4.79)} $$

whose zero level set (Fig. 4.24) shows the same stick/slip behaviour as the augmented Lagrangian of Fig. 4.22. Each Newton iteration of Algorithm 3 therefore solves a linear system for the current guess of \((\mathcal{A}_{sl}, \mathcal{A}_{st}, \mathcal{I})\), and the sets are updated with (4.73)–(4.75) until they are stationary.

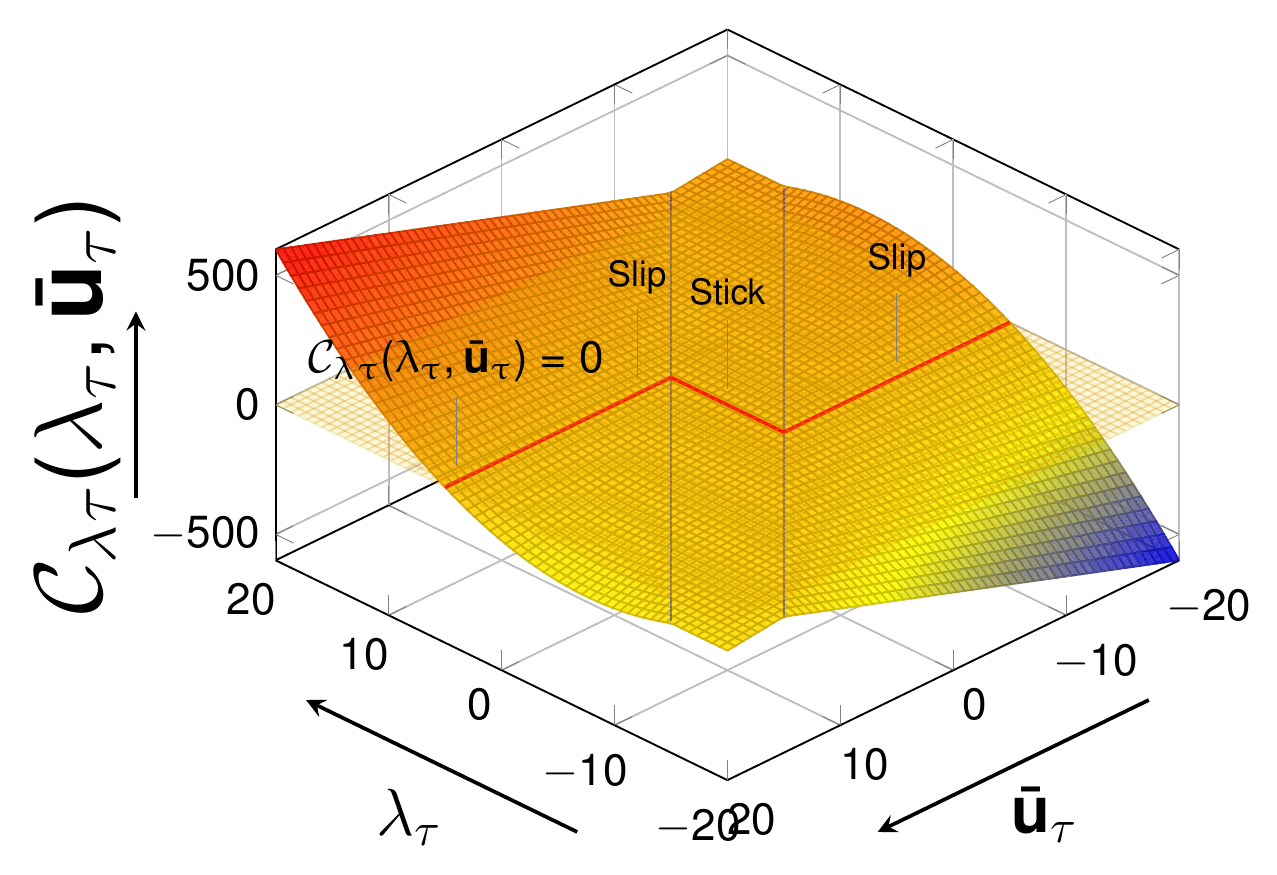

Figure: NCP function for the frictional contact problem, eq. (4.79) (thesis Fig. 4.24).

In the code the “full” semi-smooth Newton (active/slip sets updated at every nonlinear iteration) is the default; setting simplified_semi_smooth_newton: true in contact_settings clears the INTERACTION flag of the computing model part and the sets are then updated only at the first iteration of each step (if (rModelPart.Is(INTERACTION) || r_process_info[NL_ITERATION_NUMBER] == 1) in ActiveSetUtilities).

How this maps to the code

The discrete functional generated for the ALM frictional condition

AugmentedLagrangianMethodFrictionalMortarContactCondition<TDim,TNumNodes,TNormalVariation,TNumNodesMaster> (custom_conditions/ALM_frictional_mortar_contact_condition.h) has MatrixSize = TDim * (2*TNumNodes + TNumNodesMaster) — master displacements, slave displacements and slave vector multipliers — and its CalculateLocalLHS/RHS are generated by automatic differentiation with automatic_differentiation/ALM_frictional_mortar_condition/generate_frictional_mortar_condition.py. The sympy functional assembled per slave node \(j\) (lines ~240–290 of the generator) is the discrete version of (4.62). With the code symbols

the quantities of the theory are built as

$$ \tilde{g}_{n,j} = -\mathbf{n}_j \cdot \left( \mathbf{D} \mathbf{x}^1 - \mathbf{M} \mathbf{x}^2 \right)_j, \qquad \bar{\lambda}_{n,j} = k \lambda_{n,j} + \varepsilon_j \tilde{g}_{n,j} $$

$$ \tilde{\mathbf{u}}^{obj}_{\tau,j} = \left( \mathbf{I} - \mathbf{n}_j \otimes \mathbf{n}_j \right) \left[ \left( \mathbf{D} - \mathbf{D}^t \right) \mathbf{x}^1 - \left( \mathbf{M} - \mathbf{M}^t \right) \mathbf{x}^2 \right]_j, \qquad \tilde{\mathbf{u}}^{nonobj}_{\tau,j} = -\left( \mathbf{I} - \mathbf{n}_j \otimes \mathbf{n}_j \right) \left[ \mathbf{D} \left( \mathbf{x}^1 - \mathbf{x}^{1,t} \right) - \mathbf{M} \left( \mathbf{x}^2 - \mathbf{x}^{2,t} \right) \right]_j $$

(TangentSlipObjective / TangentSlipNonObjective; the \(\Delta t\) of (4.68)–(4.69) cancels between the velocity and the increment and is commented out in the generated code). Note the sign convention: the weighted gap is \(-\mathbf{n} \cdot (\mathbf{D}\mathbf{x}^1 - \mathbf{M}\mathbf{x}^2)\) (positive when open), and the two slip measures are defined so that they approximate the same tangential relative motion with that convention. The five branches generated per node are then

$$ \delta \mathcal{W}_j = \begin{cases} -\dfrac{k^2}{\varepsilon_j} \lambda_{n,j} \, \delta \lambda_{n,j} - \dfrac{k^2}{\kappa \varepsilon_j} \boldsymbol{\lambda}_{\tau,j} \cdot \delta \boldsymbol{\lambda}_{\tau,j} & \text{inactive} \\[1.2em] k \tilde{g}_{n,j} \delta \lambda_{n,j} + \mathcal{D}_j \, \bar{\boldsymbol{\lambda}}_j \cdot \left( \mathbf{D} \delta \mathbf{u}^1 - \mathbf{M} \delta \mathbf{u}^2 \right)_j - \dfrac{k^2}{\varepsilon_j} \delta \boldsymbol{\lambda}_{\tau,j} \cdot \left( \boldsymbol{\lambda}_{\tau,j} - \dfrac{\bar{\mathbf{p}}_{\tau,j}}{k} \right), \quad \bar{\boldsymbol{\lambda}}_j = k \boldsymbol{\lambda}_j + \varepsilon_j \tilde{g}_{n,j} \mathbf{n}_j, \quad \bar{\mathbf{p}}_{\tau,j} = -\mu_j \bar{\lambda}_{n,j} \boldsymbol{\tau}_j & \text{active slip (objective / non-objective)} \\[1.2em] k \tilde{g}_{n,j} \delta \lambda_{n,j} + \mathcal{D}_j \, \bar{\boldsymbol{\lambda}}_j \cdot \left( \mathbf{D} \delta \mathbf{u}^1 - \mathbf{M} \delta \mathbf{u}^2 \right)_j + k \, \tilde{\mathbf{u}}_{\tau,j} \cdot \delta \boldsymbol{\lambda}_{\tau,j}, \quad \bar{\boldsymbol{\lambda}}_j = k \boldsymbol{\lambda}_j + \varepsilon_j \tilde{g}_{n,j} \mathbf{n}_j + \kappa \varepsilon_j \tilde{\mathbf{u}}_{\tau,j} & \text{active stick (objective / non-objective)} \end{cases} $$

where \(\mathcal{D}_j\) is the dynamic factor and \(\tilde{\mathbf{u}}_{\tau,j}\) is the objective or the non-objective slip according to the branch. Comparing with (4.62): the inactive branch is the “gap zone” line, the stick branch is the “contact stick zone” line with \(\bar{\boldsymbol{\lambda}}_\tau = k \boldsymbol{\lambda}_\tau + \varepsilon_\tau \tilde{\mathbf{u}}_\tau\), and the slip branch is the “contact slip zone” line where the tangential multiplier is driven to the Coulomb limit \(\bar{\mathbf{p}}_\tau = \mathscr{F}\) through the \(k^2/\varepsilon\) term (the residual \(\mathbf{r}_{\lambda_{\mathcal{A}_{sl}}}\) of (4.72b)). Only the stick branches differ between objective and non-objective slip in the functional itself, but because the LHS is linearised consistently by sympy (Compute_RHS_and_LHS with DOperator, MOperator and — for NV — NormalSlave declared DoF-dependent through DefineDofDependencyMatrix) both slip variants are also emitted.

The generated code (e.g. the first specialisation at custom_conditions/ALM_frictional_mortar_contact_condition.cpp:148) dispatches per node with nested ifs rather than through the rActiveInactive integer:

const double OperatorThreshold = rCurrentProcessInfo[OPERATOR_THRESHOLD];
const double norm_delta_M = norm_frobenius(MOperator - MOperatorold);
const double norm_delta_D = norm_frobenius(DOperator - DOperatorold);
const bool is_objetive = (norm_delta_D > OperatorThreshold && norm_delta_M > OperatorThreshold) ? true : false;
this->Set(MODIFIED, !is_objetive);

// NODE 0
if (r_geometry[0].IsNot(ACTIVE)) {           // INACTIVE
    ...
} else if (r_geometry[0].Is(SLIP)) {          // ACTIVE-SLIP
    if (is_objetive) { ... } else { ... }     // OBJECTIVE-SLIP / NONOBJECTIVE-SLIP
} else {                                      // ACTIVE-STICK
    if (is_objetive) { ... } else { ... }     // OBJECTIVE-STICK / NONOBJECTIVE-STICK
}

Objective vs. non-objective slip: OPERATOR_THRESHOLD and the MODIFIED flag

The objective slip (4.69b) is used whenever the Frobenius norms of both \(\mathbf{D} - \mathbf{D}^t\) and \(\mathbf{M} - \mathbf{M}^t\) exceed OPERATOR_THRESHOLD (process-info variable, JSON key operator_threshold, default 1.0e-3 in alm_contact_process and penalty_contact_process). Otherwise the operators are considered unchanged, the condition is flagged MODIFIED and the displacement-based (non-objective) slip is used. The same test drives the explicit computation of WEIGHTED_SLIP (below), so that the residual and the nodal slip are consistent.

Previous mortar operators and buffer size

mPreviousMortarOperators (type MortarOperator<TNumNodes,TNumNodesMaster>) holds \(\mathbf{D}^t\), \(\mathbf{M}^t\); mPreviousMortarOperatorsInitialized is reset in FinalizeSolutionStep and the operators are recomputed on demand by ComputePreviousMortarOperators (template ALM_frictional_mortar_contact_condition_template.cpp:139, delegating to MortarExplicitContributionUtilities::ComputePreviousMortarOperators, which integrates \(\mathbf{D}\), \(\mathbf{M}\) on the coordinates of the previous step). The StepSlip = TNormalVariation ? 0 : 1 constant of the header is the buffer position historically associated with the slip; the currently generated code does not use it, the previous displacements being taken from DerivativeDataFrictional (u1old = DISPLACEMENT(1) - DISPLACEMENT(2)), which reads buffer positions 1 and 2. This is why AuxiliarySetSettings (python_scripts/auxiliary_methods_solvers.py) raises the buffer_size to at least 3 for every mortar_type containing Frictional. Both members are serialised, so restarts keep the slip history.

Nodal slip: WEIGHTED_SLIP and TANGENT_SLIP

MortarExplicitContributionUtilities::AddExplicitContributionOfMortarFrictionalCondition (custom_utilities/mortar_explicit_contribution_utilities.cpp, called from AddExplicitContribution of the frictional conditions) integrates \(\mathbf{D}\), \(\mathbf{M}\) on the current configuration and accumulates on each slave node the weighted gap \(-\mathbf{n} \cdot (\mathbf{D}\mathbf{x}^1 - \mathbf{M}\mathbf{x}^2)_j\) into WEIGHTED_GAP and the weighted slip increment into WEIGHTED_SLIP:

$$ \dot{\mathbf{s}}_j = \begin{cases} \dfrac{1}{\Delta t} \left[ \left( \mathbf{D} - \mathbf{D}^t \right) \mathbf{x}^1 - \left( \mathbf{M} - \mathbf{M}^t \right) \mathbf{x}^2 \right]_j & \text{objective (condition not MODIFIED)} \\ -\dfrac{1}{\Delta t} \left[ \mathbf{D} \left( \mathbf{x}^1 - \mathbf{x}^{1,t} \right) - \mathbf{M} \left( \mathbf{x}^2 - \mathbf{x}^{2,t} \right) \right]_j & \text{non-objective (MODIFIED)} \end{cases}, \qquad \texttt{WEIGHTED\_SLIP}_j \mathrel{+}= \Delta t \left( \dot{\mathbf{s}}_j - \left( \mathbf{n}_j \cdot \dot{\mathbf{s}}_j \right) \mathbf{n}_j \right) $$

WEIGHTED_SLIP is thus the assembled \(\tilde{\mathbf{u}}_\tau\) of (4.69b) (an integrated, area-weighted quantity, like WEIGHTED_GAP); TANGENT_SLIP is the corresponding non-weighted nodal slip (WEIGHTED_SLIP/NODAL_AREA), only used for debugging output. Both WEIGHTED_GAP and WEIGHTED_SLIP are zeroed and recomputed in Predict() of the contact strategy and in BaseMortarConvergenceCriteria::PostCriteria (ALMFrictionalMortarConvergenceCriteria::ResetWeightedGap).

Active and slip/stick sets: ActiveSetUtilities

ActiveSetUtilities::ComputeALMFrictionalActiveSet(rModelPart, PureSlip, EchoLevel) (custom_utilities/active_set_utilities.cpp:265-371) implements steps 16–17 of Algorithm 3 for the ALM. For every SLAVE node of the Contact sub-model part it computes

$$ \bar{\lambda}_n = k \, \mathbf{n} \cdot \boldsymbol{\lambda} + \varepsilon \, \tilde{g}_n \;\; (\texttt{AUGMENTED\_NORMAL\_CONTACT\_PRESSURE}), \qquad \bar{\boldsymbol{\lambda}}_\tau = \begin{cases} k \boldsymbol{\lambda}_\tau + \alpha \, \kappa \, \varepsilon \, \tilde{\mathbf{u}}_\tau & \text{node currently SLIP} \\ k \boldsymbol{\lambda}_\tau + \kappa \, \varepsilon \, \tilde{\mathbf{u}}_\tau & \text{node currently STICK} \end{cases} \;\; (\texttt{AUGMENTED\_TANGENT\_CONTACT\_PRESSURE}) $$

with \(\alpha\) = SLIP_AUGMENTATION_COEFFICIENT (JSON slip_augmentation_coefficient, default 0.0: for a slipping node the augmentation with the slip is dropped, which is the thesis choice (4.77) only for stick), \(\kappa\) = TANGENT_FACTOR, \(\varepsilon\) the nodal INITIAL_PENALTY (or the process-info one) and \(\tilde{\mathbf{u}}_\tau\) = WEIGHTED_SLIP. Then:

1. Active set (4.73–4.74): if \(\bar{\lambda}_n \lt 0\) the node is active; an inactive node becoming active gets its multiplier initialised to \(\mathbf{n} \bar{\lambda}_n / k + \bar{\boldsymbol{\lambda}}_\tau / k\) (tangential part only if \(\mu \gt 0\)). If \(\bar{\lambda}_n \ge 0\) the node is deactivated, its SLIP flag reset and WEIGHTED_SLIP zeroed.
2. Slip/stick set (4.75–4.77) for active nodes: the ratio \(\Vert \bar{\boldsymbol{\lambda}}_\tau \Vert / (-\mu \bar{\lambda}_n)\) is compared with 1.0 for a stick node and with 1.0 - SLIP_THRESHOLD for a node already slipping (JSON slip_threshold, default 2.0e-2): this hysteresis avoids oscillations between the two states near the Coulomb limit. A node classified as slip gets AUGMENTED_TANGENT_CONTACT_PRESSURE overwritten with the Coulomb limit \(-\mu \bar{\lambda}_n \, \boldsymbol{\lambda}_\tau / \Vert \boldsymbol{\lambda}_\tau \Vert\) (i.e. \(\mathscr{F}_{ALM}\) in the direction of the current tangential multiplier).
3. The function returns array_1d<std::size_t,2> = (number of active-set changes, number of slip/stick changes); ALMFrictionalMortarConvergenceCriteria::PostCriteria stores them as ACTIVE_SET_CONVERGED and SLIP_SET_CONVERGED in the process info and prints the two extra columns of Fig. 4.23 (ACTIVE SET CONV, SLIP/STICK CONV; the second one is omitted in pure slip).

ComputePenaltyFrictionalActiveSet is the counterpart of (4.71a): \(\bar{\lambda}_n = \varepsilon \tilde{g}_n\), \(\bar{\boldsymbol{\lambda}}_\tau = \kappa \varepsilon \tilde{\mathbf{u}}_\tau\), and for a slipping node the tangent direction is \(\tilde{\mathbf{u}}_\tau / \Vert \tilde{\mathbf{u}}_\tau \Vert\) as stated after (4.71a). Both functions are exposed to Python in the ActiveSetUtilities submodule.

The tangent direction \(\boldsymbol{\tau}_j\)

TangentSlave in the generated code is MortarUtilities::ComputeTangentMatrix(r_geometry), i.e. the nodal TANGENT_XI vectors. They are refreshed in BaseMortarConvergenceCriteria::PreCriteria by MortarUtilities::ComputeNodesTangentModelPart: for a stick node (or when no slip variable is given) the tangent is the direction of \(\boldsymbol{\lambda}_\tau = \boldsymbol{\lambda} - (\boldsymbol{\lambda} \cdot \mathbf{n}) \mathbf{n}\); for a slip node the direction of WEIGHTED_SLIP is preferred, falling back to \(\boldsymbol{\lambda}_\tau\) and finally to an arbitrary tangent built from the normal (ComputeTangentsFromNormal). In pure slip, or when there is no vector multiplier (penalty), the slip direction is always used (ComputeNodesTangentModelPart(r_contact_model_part, &WEIGHTED_SLIP, 1.0, true)).

GetActiveInactiveValue: the \(3^i\) encoding

MortarContactCondition::CalculateConditionSystem passes an integer summarising the nodal states to CalculateLocalLHS/RHS. For the frictionless families it is \(\sum_i a_i 2^i\) (\(a_i \in \{0,1\}\)). For the frictional families (ALM_frictional_mortar_contact_condition.h:437-450, penalty_frictional_mortar_contact_condition.h) three states per node are needed, hence a base-3 code:

$$ \text{value} = \sum_{i=0}^{n_{slaves}-1} s_i \, 3^i, \qquad s_i = \begin{cases} 0 & \text{node } i \text{ inactive} \\ 1 & \text{active and SLIP} \\ 2 & \text{active and stick} \end{cases} $$

which corresponds to convert_chain_int_int in the generator. Because the generated frictional code branches on the nodal flags directly (see above), the integer is currently only informative for these families, but it is what a switch-based dispatch would key on.

Friction coefficient and frictional laws (Coulomb and Tresca)

The conditions read \(\mu_j\) nodally: GetFrictionCoefficient() (ALM_frictional_mortar_contact_condition.h:456-467) returns r_geometry[i_node].GetValue(FRICTION_COEFFICIENT) for the slave nodes, with a // TODO: Define the "CL" or friction law to compute this comment. ALMContactProcess fills it from the JSON friction_coefficients dictionary (one value per contact pair "0"…"9"), stored in the pair property and copied to the nodes (a warning is printed if the property already defines FRICTION_COEFFICIENT).

The custom_frictional_laws/ folder contains the object-oriented formulation of \(\mathscr{F}\): FrictionalLaw → FrictionalLawWithDerivative<TDim,TNumNodes,TNormalVariation,TNumNodesMaster> → CoulombFrictionalLaw / TrescaFrictionalLaw (Python names CoulombFrictionalLaw2D2N, …, with NV suffixes). CoulombFrictionalLaw::GetThresholdValue returns \(-\mu \cdot\)AUGMENTED_NORMAL_CONTACT_PRESSURE \(= -\mu \bar{\lambda}_n\), i.e. \(\mathscr{F}_{ALM}\) of (4.76) with the sign of (4.72b), and GetDerivativeThresholdValue linearises it w.r.t. displacement DoFs (through \(\Delta \mathbf{D}\), \(\Delta \mathbf{M}\)) and multiplier DoFs (\(-\mu k n_i\)). TrescaFrictionalLaw::GetThresholdValue returns the constant TRESCA_FRICTION_THRESHOLD (properties → node → process info) and a zero derivative: it is the constant-threshold law of eq. (4.1). Note: these laws are work in progress. The variable FRICTIONAL_LAW is registered but not consumed anywhere, the JSON key frictional_law (default "Coulomb") is stored by the processes but not acted upon, and the generated conditions hard-code Coulomb through mu; consequently only Coulomb friction is effectively available. See Frictional laws and MPC constraint.

Penalty frictional counterpart

PenaltyMethodFrictionalMortarContactCondition (custom_conditions/penalty_frictional_mortar_contact_condition.{h,cpp}, generator automatic_differentiation/penalty_frictional_mortar_condition/generate_penalty_frictional_mortar_condition.py) has MatrixSize = TDim*(TNumNodes+TNumNodesMaster) (no multipliers) and generates three branches per node, the discrete form of (4.58) with the objective slip only:

$$ \delta \mathcal{W}_j = \begin{cases} 0 & \text{inactive} \\ \mathcal{D}_j \left[ \varepsilon_j \tilde{g}_{n,j} \, \delta \tilde{g}_{n,j} - \mu_j \varepsilon_j \tilde{g}_{n,j} \, \boldsymbol{\tau}_j \cdot \delta \tilde{\mathbf{u}}^{obj}_{\tau,j} \right] & \text{active slip} \\ \mathcal{D}_j \left[ \varepsilon_j \tilde{g}_{n,j} \, \delta \tilde{g}_{n,j} + \kappa \varepsilon_j \, \tilde{\mathbf{u}}^{obj}_{\tau,j} \cdot \delta \tilde{\mathbf{u}}^{obj}_{\tau,j} \right] & \text{active stick} \end{cases} $$

It keeps its own mPreviousMortarOperators, uses ComputeTangentMatrixSlip for \(\boldsymbol{\tau}_j\) and the same OPERATOR_THRESHOLD / MODIFIED logic for the explicit WEIGHTED_SLIP. The default tangent_factor of penalty_contact_process is 1.0e-3 (versus 2.5e-2 for the ALM process).

MPC frictional contact (SLIP flag)

The multipoint-constraint variant (MPCMortarContactCondition, mpc_contact_process, solver mpc_contact_settings) does not assemble the systems above. MPCContactProcess sets the SLIP flag on the main model part and on every contact condition when contact_type contains Frictional; MPCMortarContactCondition::InitializeNonLinearIteration (mpc_mortar_contact_condition.cpp:176-216) then dispatches to UpdateConstraintFrictional (:716), which builds the relation matrix of the ContactMasterSlaveConstraint from \(\mathbf{D}^{-1}\mathbf{M}\) (diagonal inverse with dual multipliers): a stick slave node is tied to the master in all components (\(u^1_{j,d} = \sum_l (\mathbf{D}^{-1}\mathbf{M})_{jl} \, u^2_{l,d}\)), whereas a node flagged SLIP is constrained only in the normal direction (\(\mathbf{n} \otimes \mathbf{n}\) projection of the same coefficients), i.e. frictionless sliding — a simplified stick/perfect-slip model rather than the full Coulomb law (the source carries // TODO: Add nodal forces / // TODO: ADD the contribution of slip to constant vector). The weighted gap enters the constant vector. The stick/slip state per node is decided in MPCContactCriteria from the mapped reactions; the default tangent_factor of mpc_contact_process is 1.0e-1.

Pure slip

contact_type: "FrictionalPureSlip" (or mortar_type: "ALMContactFrictionalPureSlip" / "PenaltyContactFrictionalPureSlip") forces every active node to the slip branch: the active-set utilities never switch a node back to stick, the SLIP/STICK CONV column is dropped and the tangent is always taken from WEIGHTED_SLIP. In addition, ALMContactProcess::ExecuteInitialize and ContactConvergenceCriteriaFactory call AuxiliaryPureSlipCheck(model_part) (auxiliary_methods_solvers.py), which returns True when the sum of all FRICTION_COEFFICIENT values found in the properties is below machine precision: a “frictional” case with \(\mu = 0\) everywhere is automatically run in pure slip, which is then equivalent to the frictionless components formulation.

Resetting the slip state: slip_step_reset_frequency

ALMContactProcess::ExecuteInitializeSolutionStep calls _reset_slip_flag(), controlled by the JSON key slip_step_reset_frequency (default 1):

• n > 0: every n steps all nodes of the contact model part get SLIP = false, so that each step starts from the stick guess (the thesis choice: the stick/slip set of step 6 of Algorithm 3 is re-initialised);
• 0: never reset, the converged state of the previous step is the initial guess;
• n < 0: never reset, and the nodal tangents are updated from the direction of WEIGHTED_SLIP (MortarUtilities.ComputeNodesTangentModelPart(model_part, WEIGHTED_SLIP, 1.0, True)), “à la pure slip”.

In pure slip the reset is skipped.

Normal update

For frictional problems the process appends WithNormalUpdate to contact_type unless not_normal_update_frictional: true: with normal_variation: "no_derivatives_computation" this selects NormalDerivativesComputation.NO_DERIVATIVES_COMPUTATION_WITH_NORMAL_UPDATE, so the nodal normals (and therefore \(\boldsymbol{\tau}_j\)) are refreshed at each iteration even though their derivatives are not included in the LHS. Full consistent linearisation of the normal (the NV conditions) is obtained with normal_variation: "elemental_derivatives" or "nodal_elemental_derivatives", see Linearisation and derivatives.

Convergence criteria with stick/slip tolerances

ContactConvergenceCriteriaFactory wraps the user criterion and the mortar criterion in MortarAndConvergenceCriteria. For ALMContactFrictional* with frictional_decomposed: true (default in contact_settings) the user criterion is one of DisplacementLagrangeMultiplierFrictionalContactCriteria, DisplacementLagrangeMultiplierResidualFrictionalContactCriteria (registered name displacement_lagrangemultiplier_ressidual_frictional_contact_criteria, typo preserved in source) or DisplacementLagrangeMultiplierMixedFrictionalContactCriteria, which implement the four checks of (4.78): the multiplier DoFs are split into normal, tangential-stick and tangential-slip groups (it_node->Is(SLIP) || pure_slip) and each group has its own relative/absolute tolerance:

{
    "name"                                                     : "displacement_lagrangemultiplier_frictional_contact_criteria",
    "ensure_contact"                                           : false,
    "pure_slip"                                                : false,
    "print_convergence_criterion"                              : false,
    "displacement_relative_tolerance"                          : 1.0e-4,
    "displacement_absolute_tolerance"                          : 1.0e-9,
    "rotation_relative_tolerance"                              : 1.0e-4,
    "rotation_absolute_tolerance"                              : 1.0e-9,
    "contact_displacement_relative_tolerance"                  : 1.0e-4,
    "contact_displacement_absolute_tolerance"                  : 1.0e-9,
    "frictional_stick_contact_displacement_relative_tolerance" : 1.0e-4,
    "frictional_stick_contact_displacement_absolute_tolerance" : 1.0e-9,
    "frictional_slip_contact_displacement_relative_tolerance"  : 1.0e-4,
    "frictional_slip_contact_displacement_absolute_tolerance"  : 1.0e-9,
    "ratio_normal_tangent_threshold"                           : 1.0e-4
}

The tangential checks are also satisfied when the tangential/normal ratio of the absolute norms falls below ratio_normal_tangent_threshold (the tangential multipliers are then negligible with respect to the normal ones). In contact_settings of the solver these appear as frictional_stick_contact_displacement_relative_tolerance, frictional_stick_contact_residual_relative_tolerance, frictional_slip_contact_… etc. (see Solver settings reference). The mortar criterion is ALMFrictionalMortarConvergenceCriteria / PenaltyFrictionalMortarConvergenceCriteria (pure_slip and print_convergence_criterion options), which performs the active-set part of line 19 of Algorithm 3.

JSON parameters specific to friction

All keys live in the Parameters of alm_contact_process (identical in penalty_contact_process; a subset in mpc_contact_process). Defaults from python_scripts/alm_contact_process.py:

The corresponding solver-side settings are mortar_type (ALMContactFrictional, ALMContactFrictionalPureSlip, PenaltyContactFrictional, PenaltyContactFrictionalPureSlip), the buffer_size ≥ 3 rule, the automatic insertion of MixedULMLinearSolver for ALMContactFrictional*, and the variables/DoFs added by AuxiliaryAddVariables/AuxiliaryAddDofs (VECTOR_LAGRANGE_MULTIPLIER with reaction WEIGHTED_VECTOR_RESIDUAL, WEIGHTED_GAP, WEIGHTED_SLIP). A minimal frictional set-up (from tests/ALM_frictional_contact_test_2D/hyper_simple_patch_test_parameters.json):

"solver_settings" : {
    "contact_settings" : { "mortar_type" : "ALMContactFrictional" }
},
"processes" : {
    "contact_process_list" : [{
        "python_module" : "alm_contact_process",
        "kratos_module" : "KratosMultiphysics.ContactStructuralMechanicsApplication",
        "process_name"  : "ALMContactProcess",
        "Parameters"    : {
            "model_part_name"       : "Structure",
            "assume_master_slave"   : { "0" : ["Parts_Parts_Auto2"] },
            "contact_model_part"    : { "0" : ["Contact_Part"] },
            "friction_coefficients" : { "0" : 0.01 },
            "contact_type"          : "Frictional"
        }
    }]
}

Nodal variables and flags summary

Tests

The frictional formulation is exercised by the ALM_frictional_contact_test_2D / _3D and penalty_frictional_contact_test_2D data folders: the hyper-simple patch family (ALMHyperSimplePatchFrictionalTestContact, …NoFriction…, …PerfectStick…, …ThresholdSlip…, …FrictionalSlip…, …FrictionalStick…, and their Penalty… twins in tests/SmallTests.py) checks each branch of the formulation (no friction, perfect stick, threshold slip, imposed slip, imposed stick); the pure-slip machinery is covered by ALMMeshMovingMatchingTestFrictionalPureSlipContact / …NotMatching… (tests/ValidationTests.py, mortar_type: "ALMContactFrictionalPureSlip"); the Hertz and evolution-load cases (hertz_complete_test, evolution_load_test) cover the sliding benchmarks of the thesis (§4.5.3, §4.5.4). See Validation and the test suite reference.

Notes and limitations

• Only Coulomb friction is wired end to end; Tresca exists as a class but is not selectable from the processes (FRICTIONAL_LAW unused).
• The MPC frictional variant models stick / frictionless slip, not the Coulomb cone.
• The thesis equations (4.70)–(4.72) are written with a single tangential penalty \(\varepsilon_\tau\); in the code \(\varepsilon_\tau = \kappa \varepsilon_n\) with the nodal \(\varepsilon_n\) (INITIAL_PENALTY, possibly adapted by AALMAdaptPenaltyValueProcess), so tangent_factor should be understood as a ratio, not as an absolute penalty.
• Frictional runs need buffer_size ≥ 3 (enforced automatically) and, for the ALM, the MixedULMLinearSolver or a direct solver able to handle the saddle-point structure.
• The generated ALM_frictional_mortar_contact_condition.cpp has about 170 000 lines (20 specialisations × LHS/RHS × 5 branches per node); it is excluded from unity builds in CMakeLists.txt and dominates the compile time of the application.

Thesis figures © Vicente Mataix Ferrándiz, PhD thesis “Innovative mathematical and numerical models for studying the deformation of shells during industrial forming processes with the Finite Element Method”, UPC 2020, reproduced by the author. Figures marked “inspired by” are the author’s redrawings of the cited sources.
